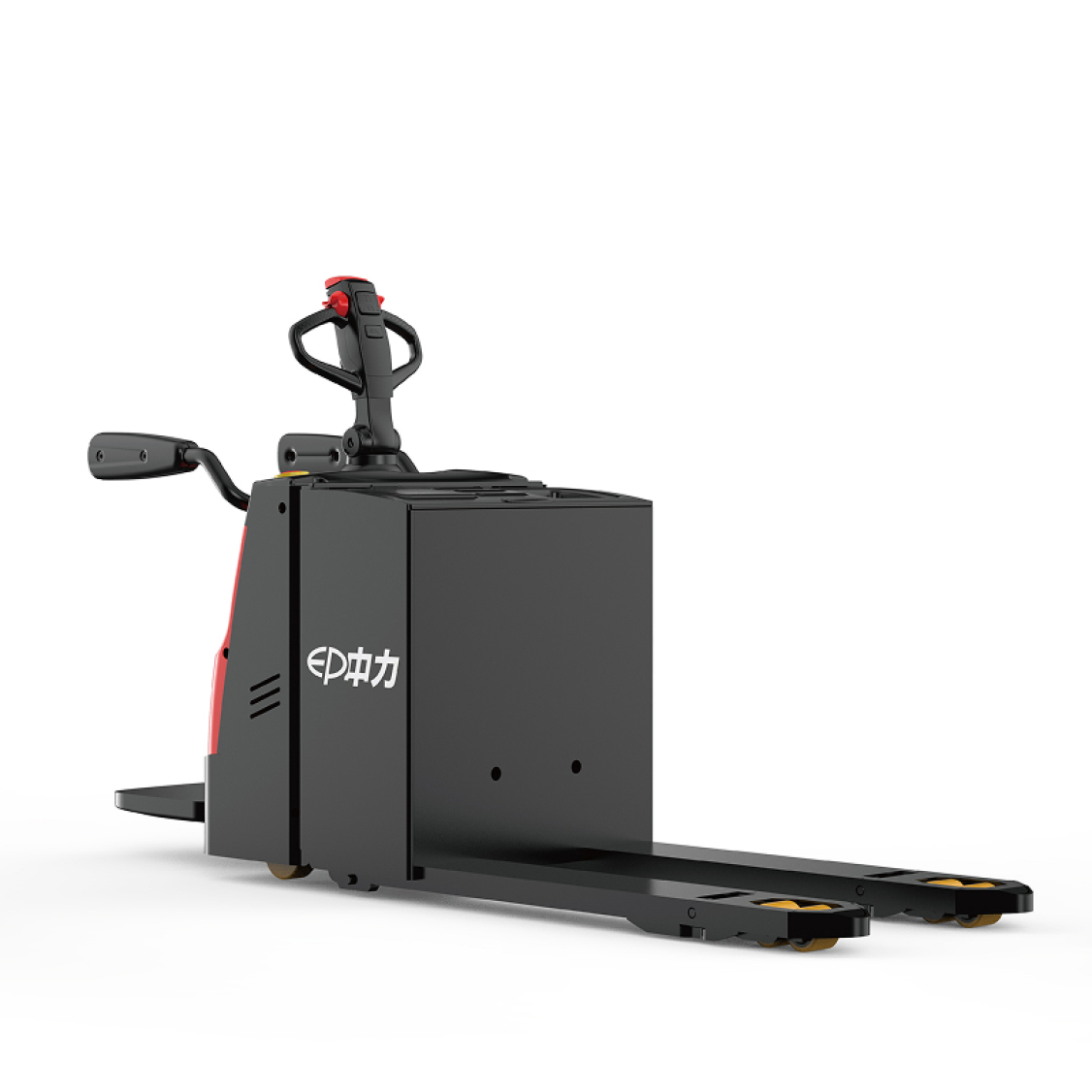

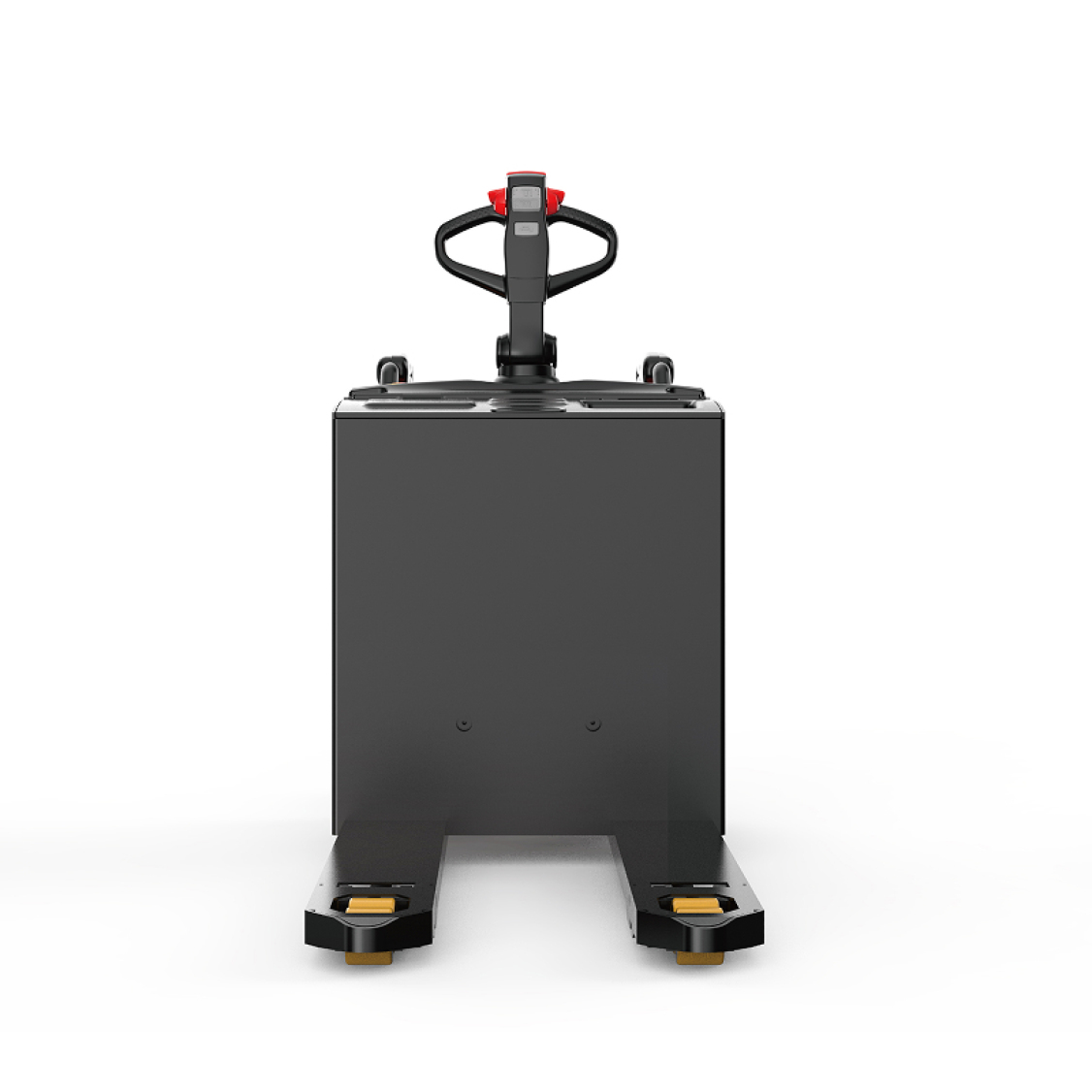

3.0 Ton Electric Pallet Truck RPL302

The 3.0 Ton Electric Pallet Truck RPL302 is a heavy-duty electric material handling device, specifically engineered for efficient transportation, loading, and unloading of palletized goods with a maximum weight of 3.0 tons. Below is its detailed introduction:

Core Performance Parameters

- Rated Load: 3000kg (3.0T), with a standard load center distance of 600mm (specific parameters subject to official configuration).
- Power Source: Typically equipped with a high-capacity maintenance-free lead-acid battery (common specifications: 48V/200Ah) for sustained heavy-duty power output; lithium-ion battery options (e.g., 48V/120Ah) are available for faster charging and longer cycle life.
- Travel Speed: 4.8km/h (no-load) and 4.2km/h (loaded), featuring stepless speed regulation to ensure smooth start/stop and prevent goods from jolting during transportation.
- Lifting Performance: Full-load lifting speed is about 0.022m/s, no-load lifting speed is approximately 0.030m/s; standard maximum lifting height is 125mm (focused on horizontal handling), and minimum fork height is 90mm for easy insertion under heavy pallets.
- Charging & Endurance: Lead-acid battery versions require 8-12 hours for a full charge, supporting 5-7 hours of continuous heavy-duty operation; lithium-ion battery versions enable fast charging (3-5 hours full charge) with 7-9 hours of continuous working time.

Key Features

- Heavy-Duty Structural Design: Adopts a thickened reinforced steel frame (thickness ≥6mm) and high-strength manganese steel forks (thickness ≥18mm), with excellent load-bearing capacity and impact resistance, suitable for frequent transportation of heavy goods (e.g., metal castings, large industrial components).
- Powerful Drive System: Equipped with a 3.5kW high-torque AC drive motor, ensuring strong and stable power output even under full load; the motor has an IP54 dustproof and waterproof rating, extending service life in harsh industrial environments.
- Stable Hydraulic System: Utilizes a high-pressure hydraulic pump and imported wear-resistant seal components, enabling quiet, smooth lifting/lowering of heavy goods and minimizing maintenance needs due to low oil leakage risks.
- Ergonomic Operation: Features an anti-fatigue control handle with adjustable angle (0-120°) and integrated control buttons (lifting, lowering, forward/backward); the handle grip is non-slip and padded, reducing operator fatigue during long shifts.
- Comprehensive Safety Protection: Standard configurations include an emergency power-off switch, overload protection (automatic power reduction when exceeding rated load), mechanical parking brake, and front/rear anti-collision buffers; some models add a fork anti-drop device to avoid safety accidents.

Dimensional Parameters (Typical Values)

- Overall length: 2200mm
- Overall width: 850mm (fork outer width; optional 685mm for narrow pallets)
- Fork length: 1220mm (optional 1150mm/1300mm)
- Turning radius: 2000mm
- Height of forks after lowering: 90mm

Application Scenarios

Widely used in heavy industry workshops (e.g., machinery manufacturing, auto parts production), large logistics warehouses (heavy goods storage), and industrial distribution centers. It is mainly used for horizontal transportation, loading, and unloading of 3.0-ton palletized goods, such as engine blocks, industrial raw materials (e.g., steel coils), and heavy-duty packaging products.
