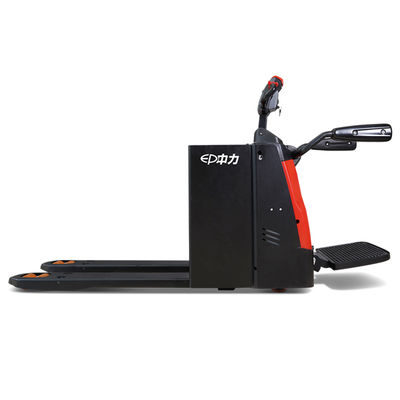

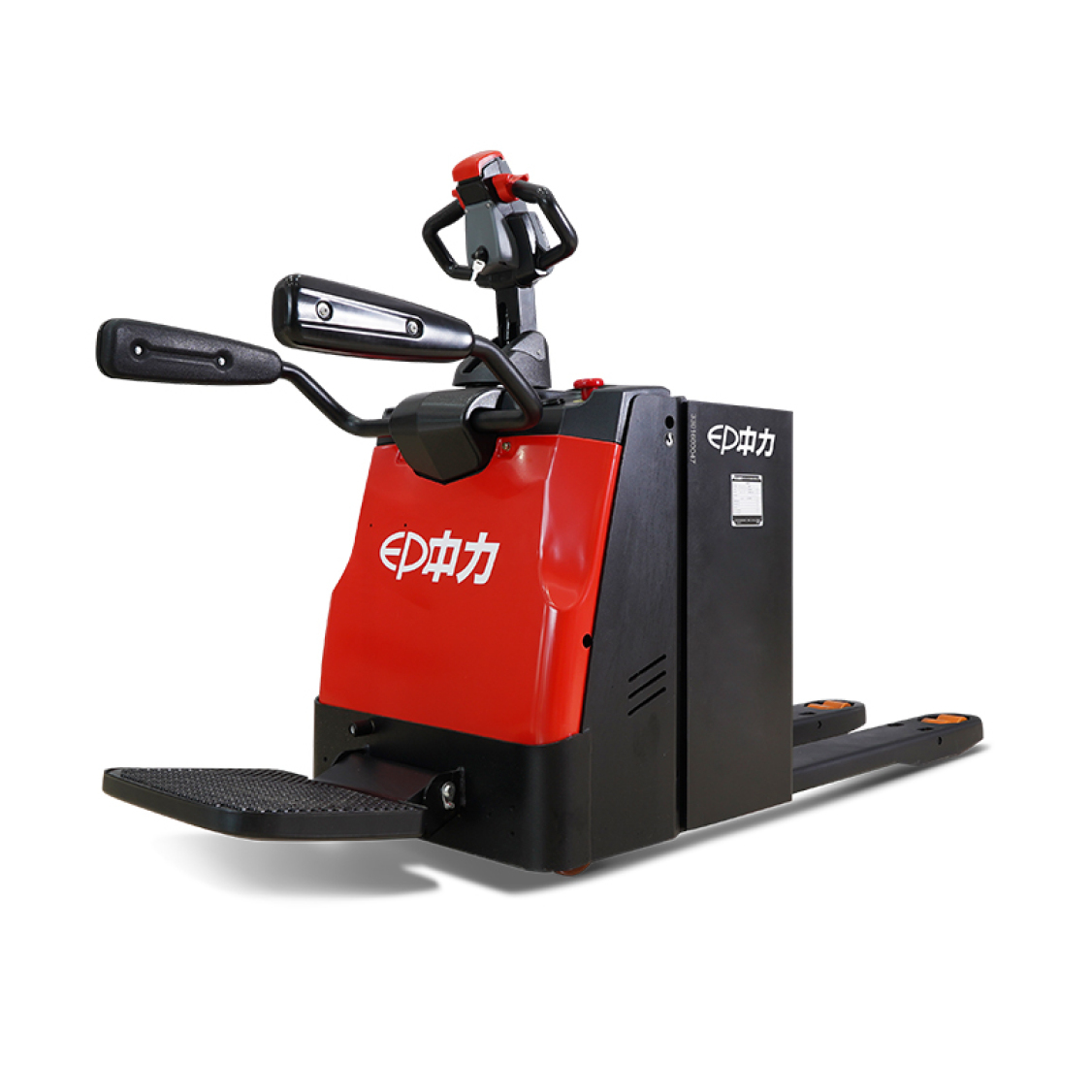

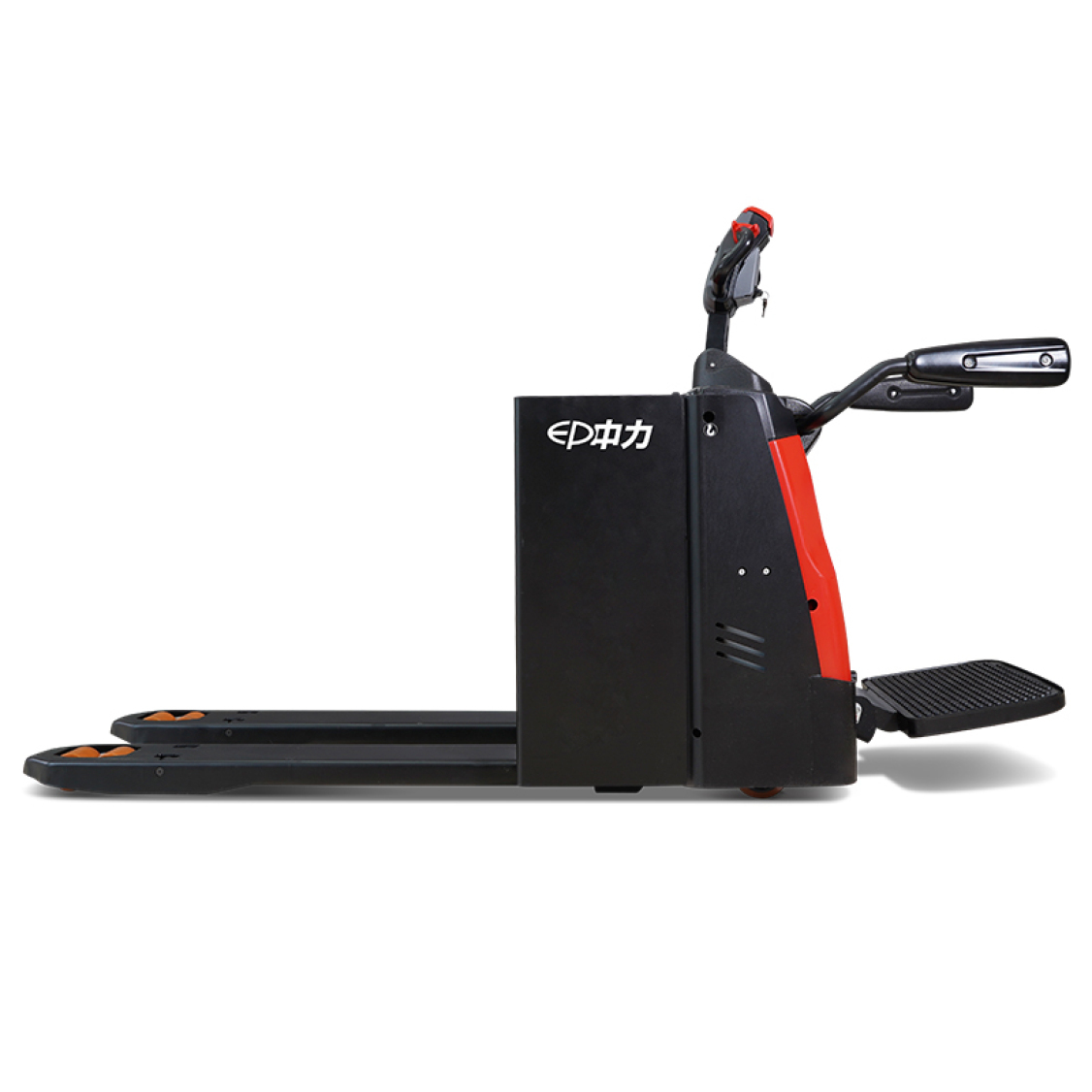

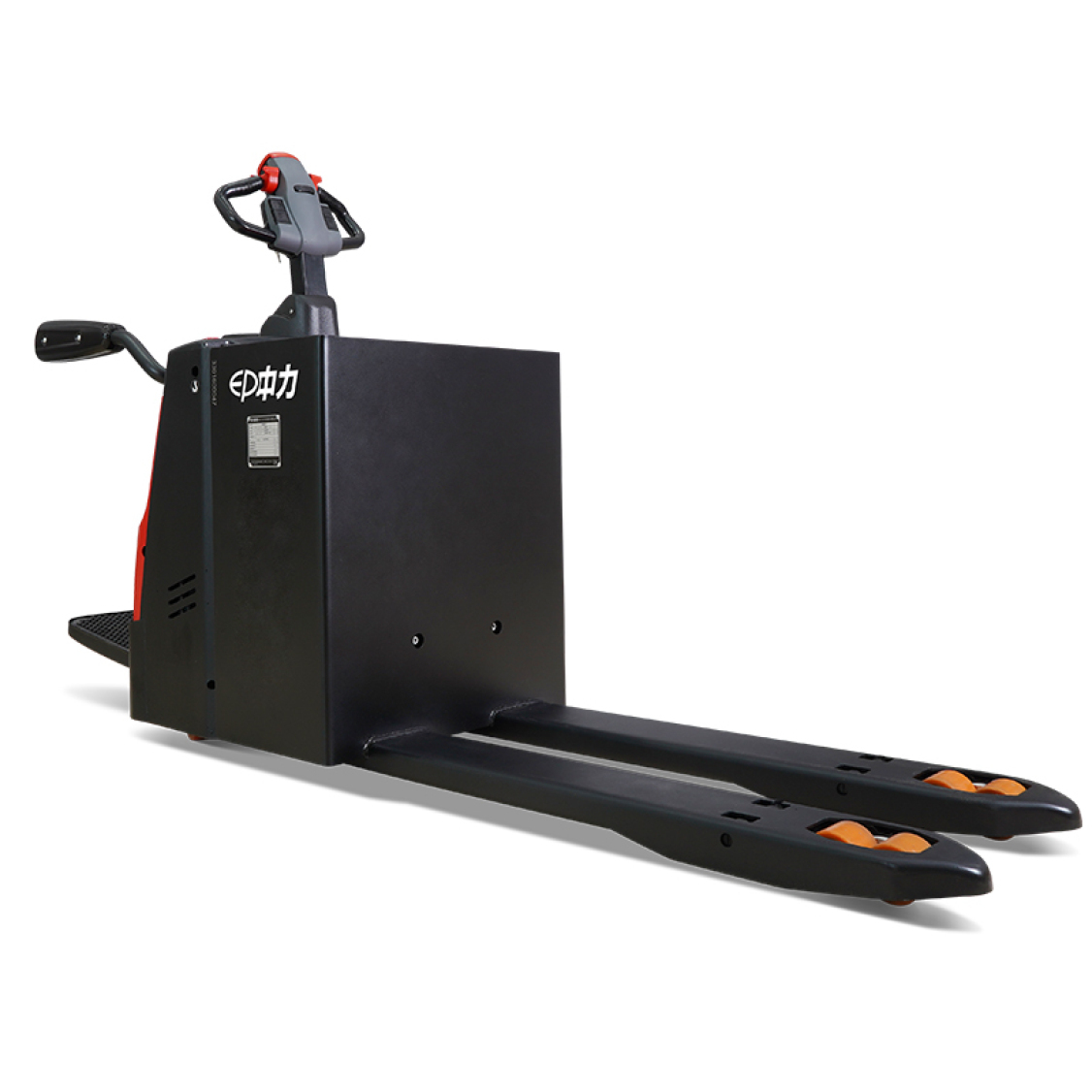

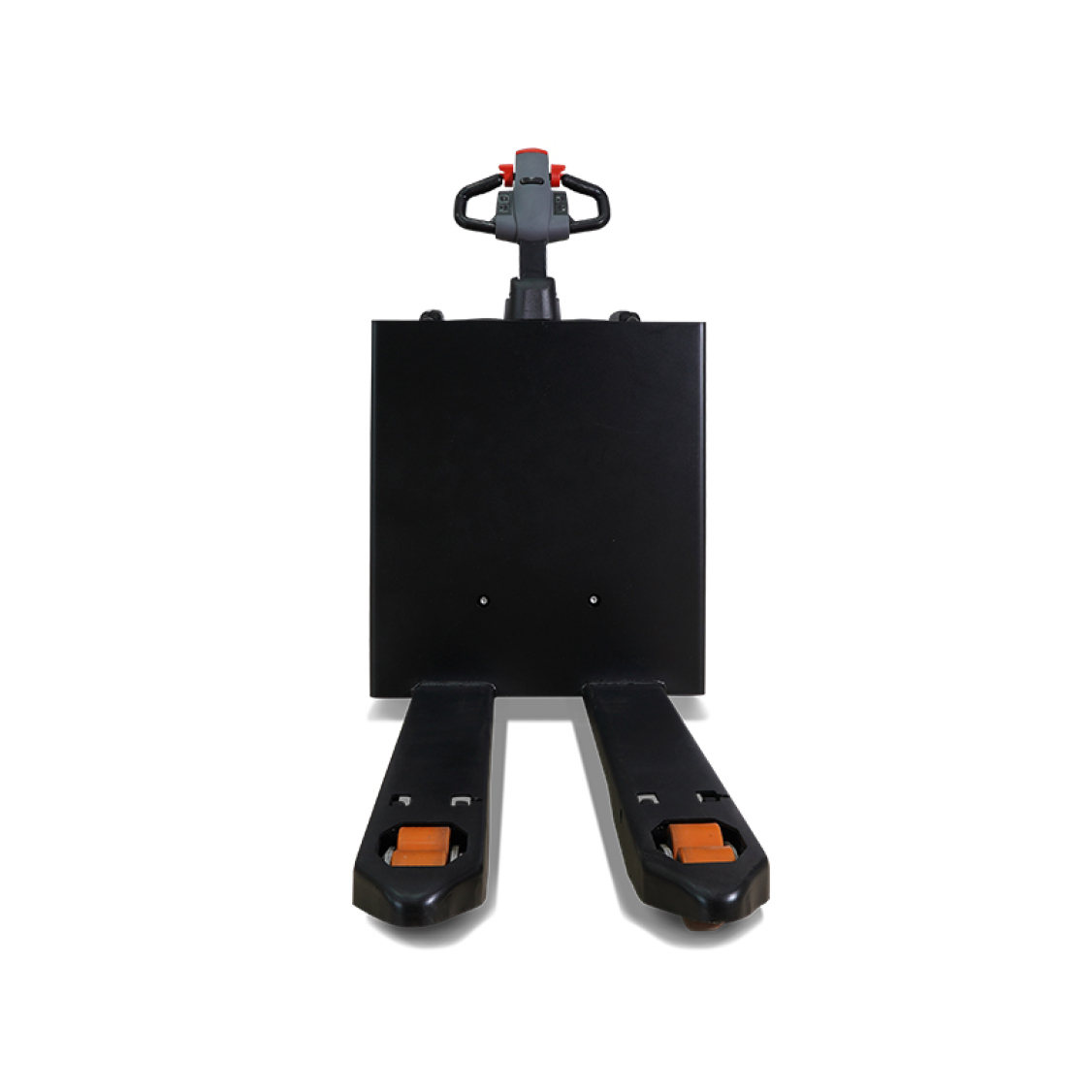

3T Electric Pallet Truck RPL301

The 3T Electric Pallet Truck RPL301 is a heavy-duty electric material handling device designed for efficient transportation, loading, and unloading of palletized goods with a maximum weight of 3 tons. Below is its detailed introduction:

Core Performance Parameters

- Rated Load: 3000kg (3T), with a standard load center distance of 600mm (specific parameters subject to official configuration).
- Power Source: Typically equipped with a high-capacity maintenance-free lead-acid battery (common specifications: 48V/150Ah or 48V/200Ah) for stable power output; some versions offer optional lithium-ion batteries (e.g., 48V/100Ah) to meet different endurance and charging speed needs.
- Travel Speed: 4.5km/h (no-load) and 4.0km/h (loaded), supporting stepless speed regulation to ensure smooth start/stop and avoid goods jolting during transportation.
- Lifting Performance: Full-load lifting speed is about 0.020m/s, no-load lifting speed is about 0.028m/s; standard maximum lifting height is 125mm (focused on horizontal handling), and minimum fork height is 90mm for easy insertion under heavy pallets.
- Charging & Endurance: Lead-acid battery versions take 8-12 hours for a full charge, supporting 5-7 hours of continuous heavy-duty operation; lithium-ion battery versions enable fast charging (3-5 hours full charge) with 6-8 hours of continuous working time.

Key Features

- Heavy-Duty Bearing Capacity: Adopts a thickened reinforced steel frame and high-strength manganese steel forks (thickness ≥16mm), with strong load-bearing and impact resistance, suitable for frequent transportation of heavy goods (e.g., metal parts, large cartons).
- Powerful Drive System: Equipped with a high-torque AC drive motor (rated power ≥3.0kW) to ensure stable power output even under full load, and the sealed motor design enhances dust and water resistance for long service life.
- Stable Hydraulic System: Uses a high-pressure hydraulic pump and wear-resistant seal components, enabling smooth and quiet lifting/lowering of heavy goods, and reducing maintenance frequency.
- Ergonomic Operation: Features an anti-fatigue control handle with integrated buttons (lifting, lowering, forward/backward), and the handle can be adjusted in angle (0-120°) to fit different operators’ postures; the handle head is non-slip for safe grip.
- Comprehensive Safety Protection: Standard configurations include emergency power-off switch, overload protection (automatic power reduction when exceeding load), mechanical parking brake, and rear anti-collision buffer; some models add a fork anti-drop device to prevent safety accidents.

Dimensional Parameters (Typical Values)

- Overall length: 2150mm
- Overall width: 820mm (fork outer width; optional 685mm for narrow pallets)
- Fork length: 1220mm (optional 1150mm/1300mm)
- Turning radius: 1950mm
- Height of forks after lowering: 90mm

Application Scenarios

Widely used in heavy industry workshops (e.g., machinery manufacturing, auto parts), logistics warehouses (heavy goods storage), and large retail distribution centers. It is mainly used for horizontal transportation, loading, and unloading of 3-ton palletized goods, such as engine components, industrial raw materials, and heavy-duty packaging products.
