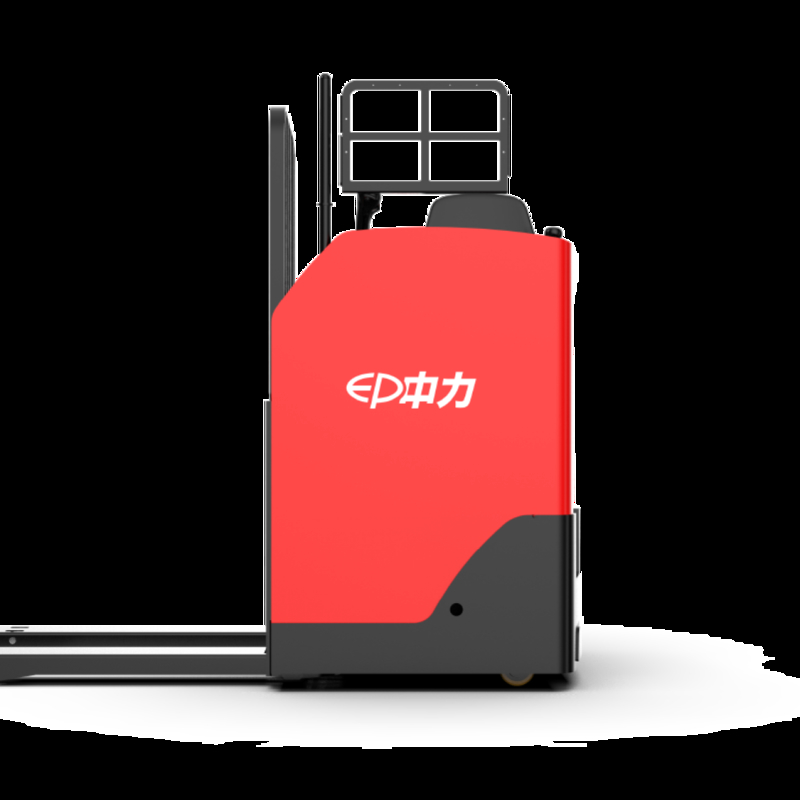

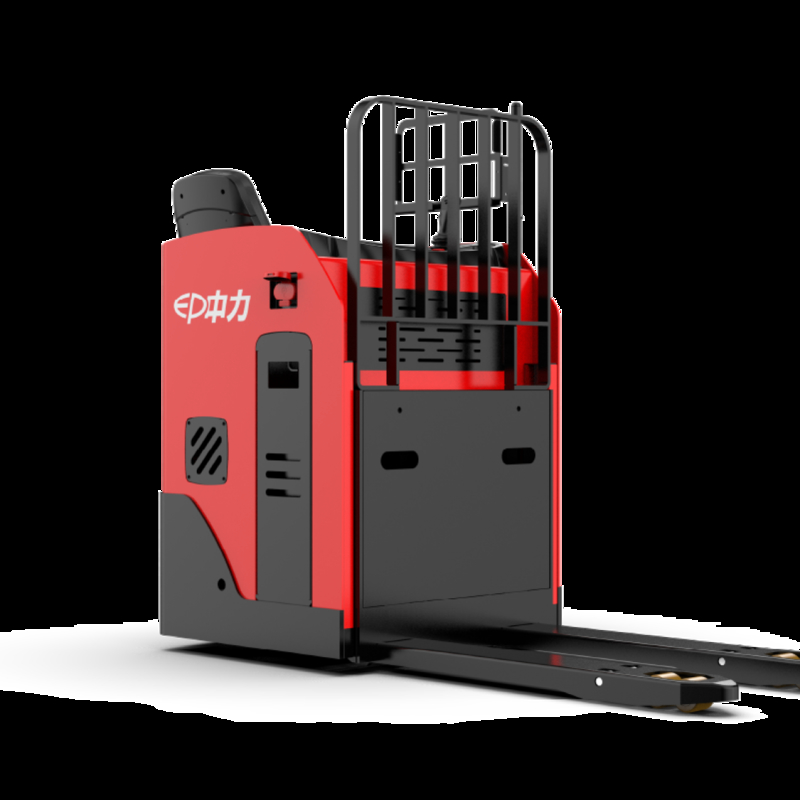

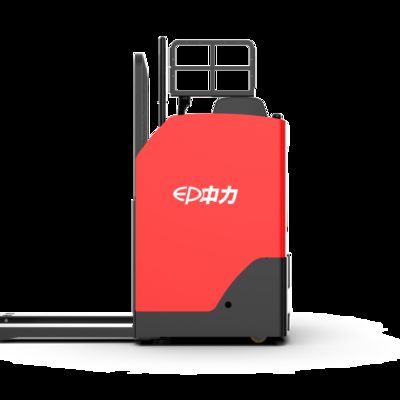

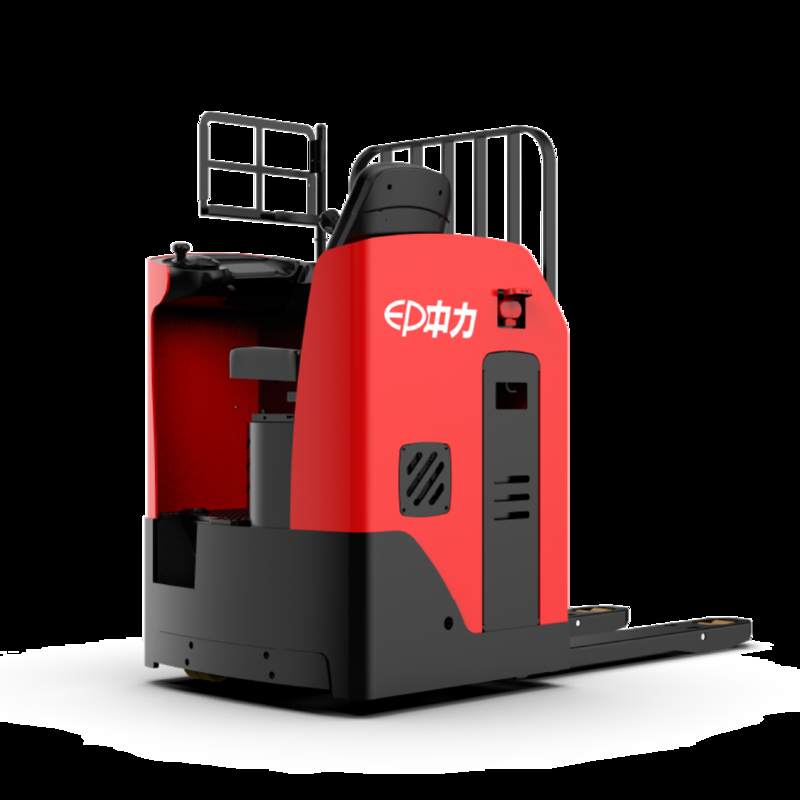

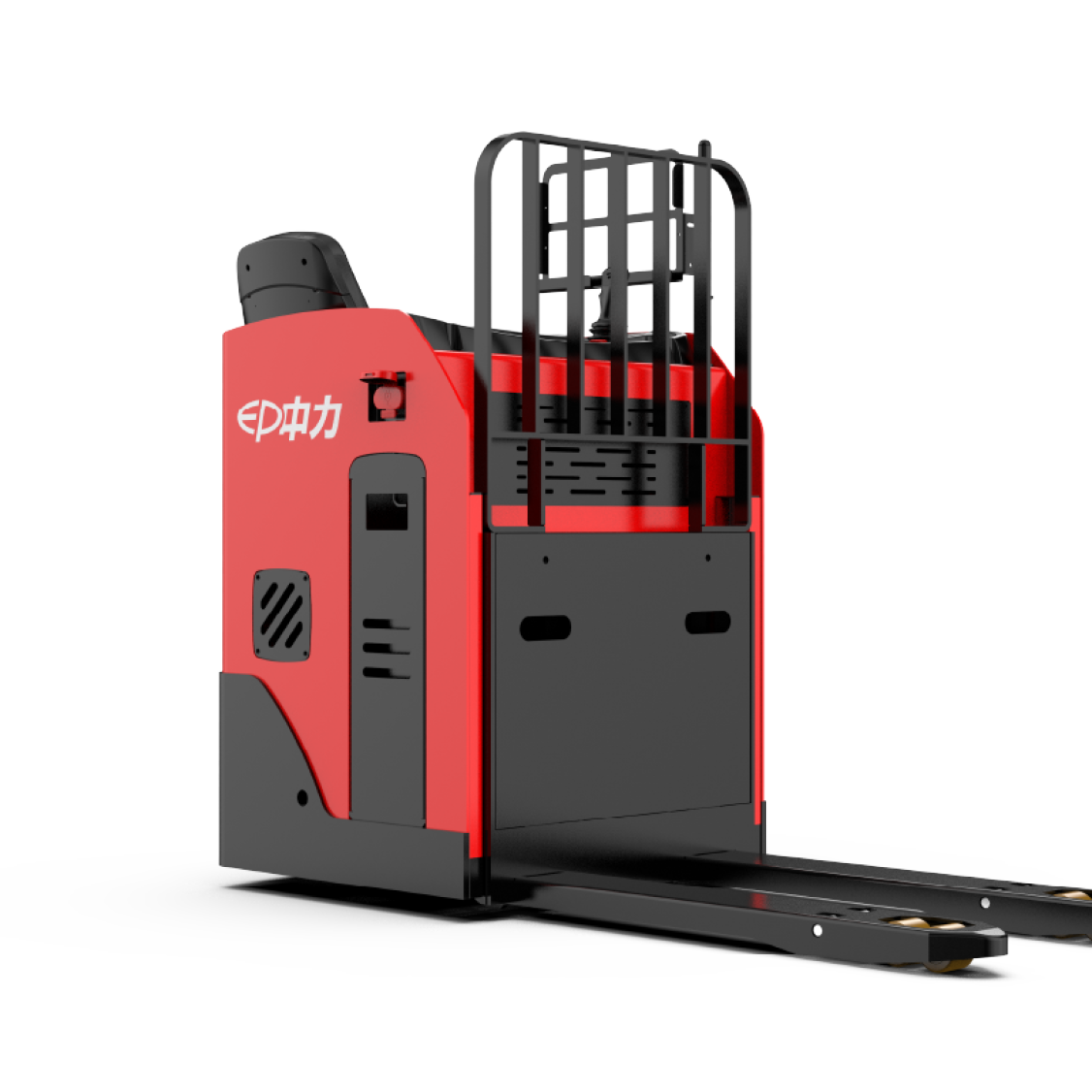

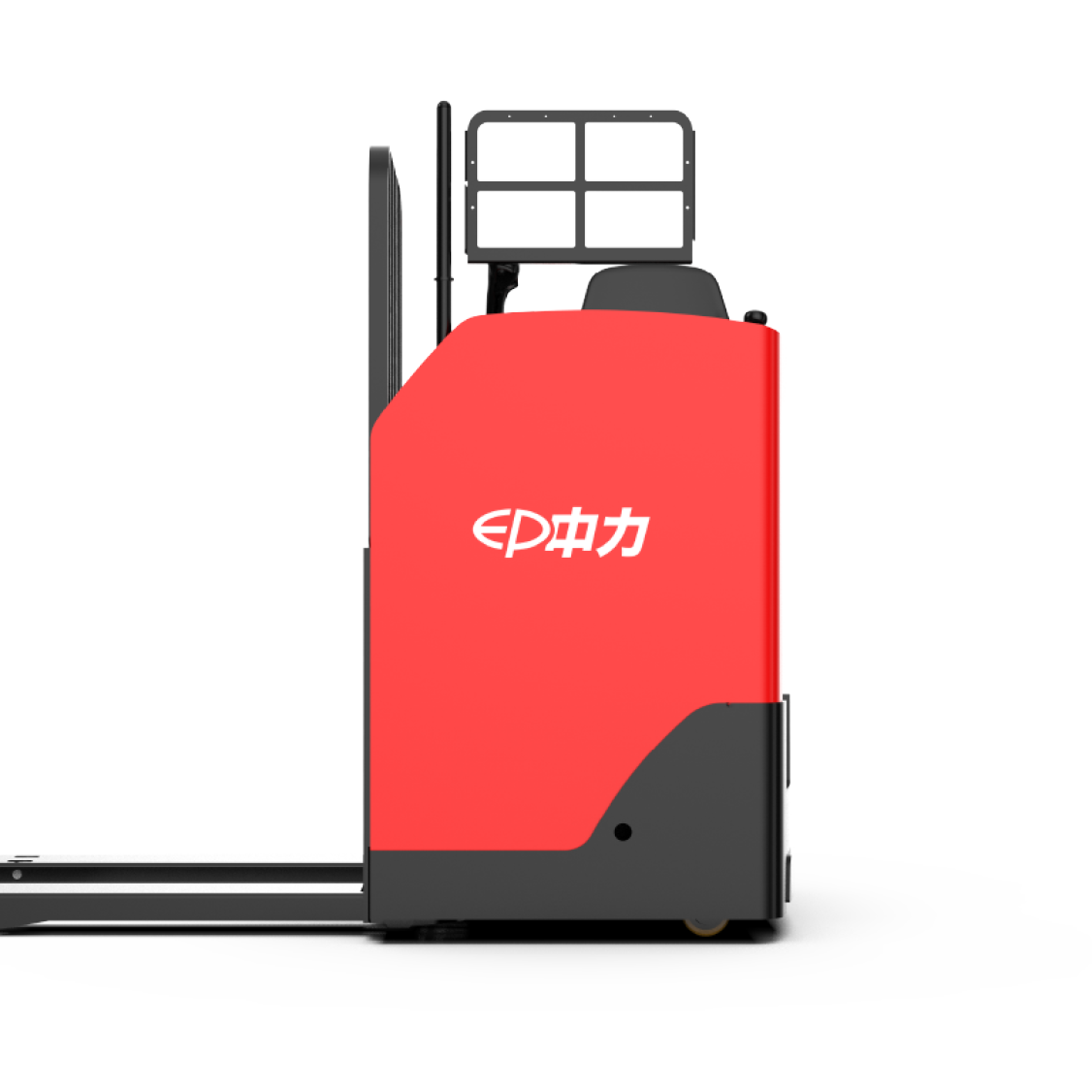

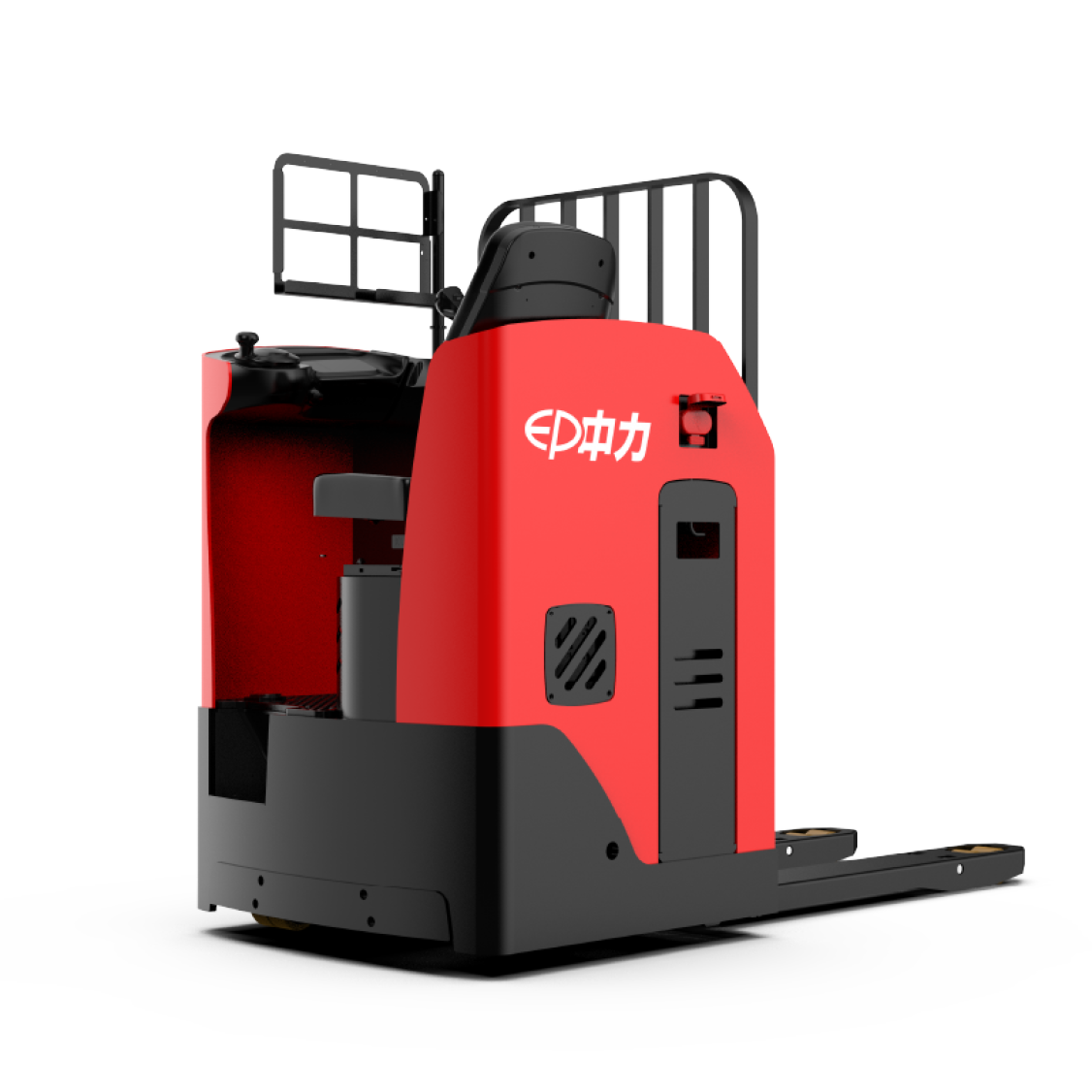

2.0 Ton Ride-On Lithium-Ion Electric Pallet Truck ZPL201

The 2.0 Ton Ride-On Lithium-Ion Electric Pallet Truck ZPL201 is a comfortable, high-efficiency material handling device designed for medium-to-long-distance transportation of palletized goods up to 2.0 tons. It combines the convenience of ride-on operation with the advantages of lithium-ion batteries, suitable for intensive logistics scenarios. Below is its detailed introduction:

Core Performance Parameters

- Rated Load: 2000kg (2.0T), with a standard load center distance of 600mm (specific parameters subject to official configuration).
- Power Source: Equipped with a high-performance lithium-ion battery (common specifications: 48V/50Ah or 48V/60Ah); supports fast charging (compatible with 220V household power or industrial chargers).
- Travel Speed: 8.0km/h (no-load) and 7.0km/h (loaded), with 3-speed adjustable settings (low/medium/high) to adapt to different workshop or warehouse distances.
- Lifting Performance: Full-load lifting speed is about 0.030m/s, no-load lifting speed is approximately 0.038m/s; standard maximum lifting height is 125mm (focused on horizontal handling), minimum fork height is 85mm for easy pallet insertion.
- Charging & Endurance: Fast charging takes 1.5-2.5 hours (0-80% capacity), full charge takes 3-4 hours; continuous working time reaches 8-10 hours under normal conditions, meeting the needs of two consecutive work shifts.

Key Features

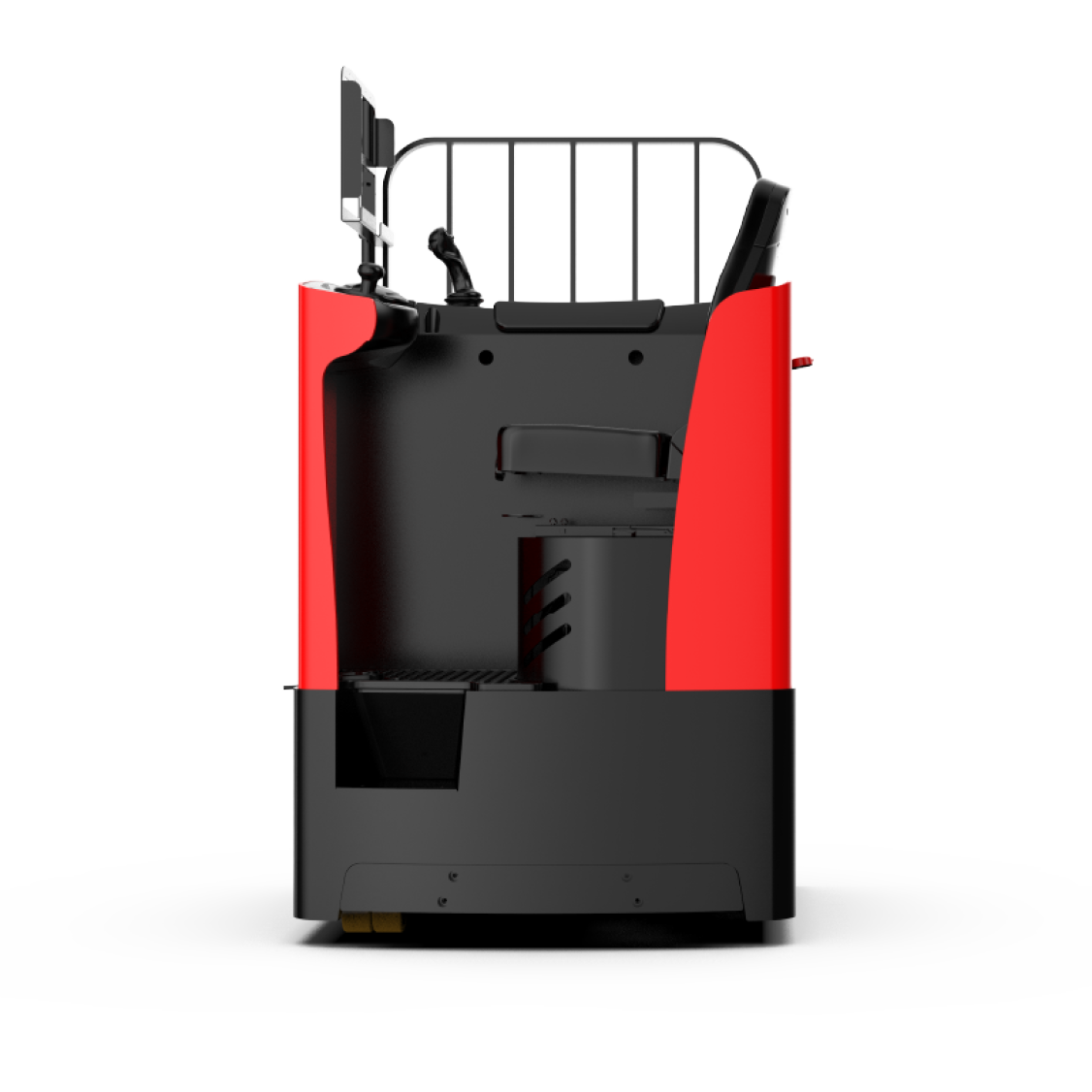

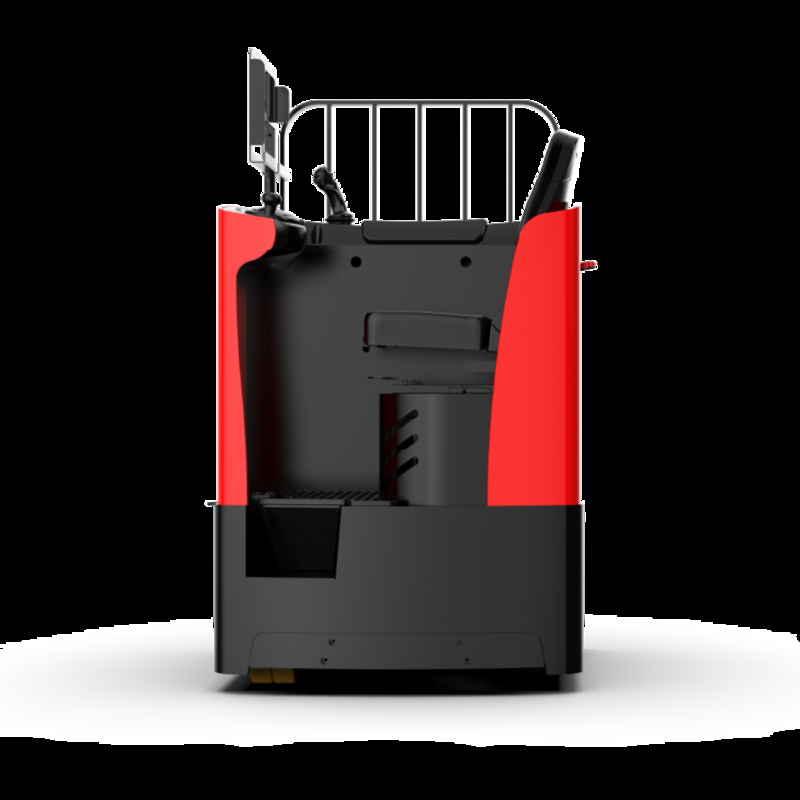

- Ride-On Comfort: Equipped with a padded adjustable seat (height and backrest angle adjustable) and non-slip footrests, reducing operator fatigue during long-distance transportation (compared to walk-behind or pedal-type models).
- Lithium-Ion Battery Advantages: No memory effect, lightweight (battery weight is ~40% less than lead-acid batteries), no electrolyte leakage, and long cycle life (up to 2000 charge-discharge cycles), lowering long-term maintenance costs.
- Efficient Drive & Control: Adopts a 2.2kW high-torque AC drive motor, ensuring smooth acceleration and stable power output; the steering system uses electronic power assistance, with small turning force and flexible maneuverability.
- Comprehensive Safety Protection: Standard configurations include emergency power-off switch, overload protection (automatic speed reduction when exceeding load), electronic parking brake, front/rear anti-collision buffers, and a seat safety switch (vehicle only starts when the operator is seated).
- Humanized Design: Features a clear LCD instrument panel (displaying battery level, speed, fault codes), and a storage compartment for tools or personal items; the control buttons are ergonomically arranged on the armrest for easy access.

Dimensional Parameters (Typical Values)

- Overall length: 2500mm
- Overall width: 800mm (fork outer width; optional 685mm for narrow pallets)
- Fork length: 1220mm (optional 1150mm/1300mm)
- Turning radius: 2100mm
- Overall height (including seat): 1850mm
- Seat height from ground: 750mm

Application Scenarios

Widely used in large-scale logistics parks, e-commerce distribution centers, manufacturing workshops (with long transportation distances), and large retail warehouses. It is mainly used for horizontal transportation, loading, and unloading of 2.0-ton palletized goods—such as large batches of daily necessities, electronic products, and semi-finished industrial parts—greatly improving efficiency in long-distance, high-frequency handling tasks.
