5000kg Electric Pallet Trolley End Controlled Rider Jack IP55 Dustproof

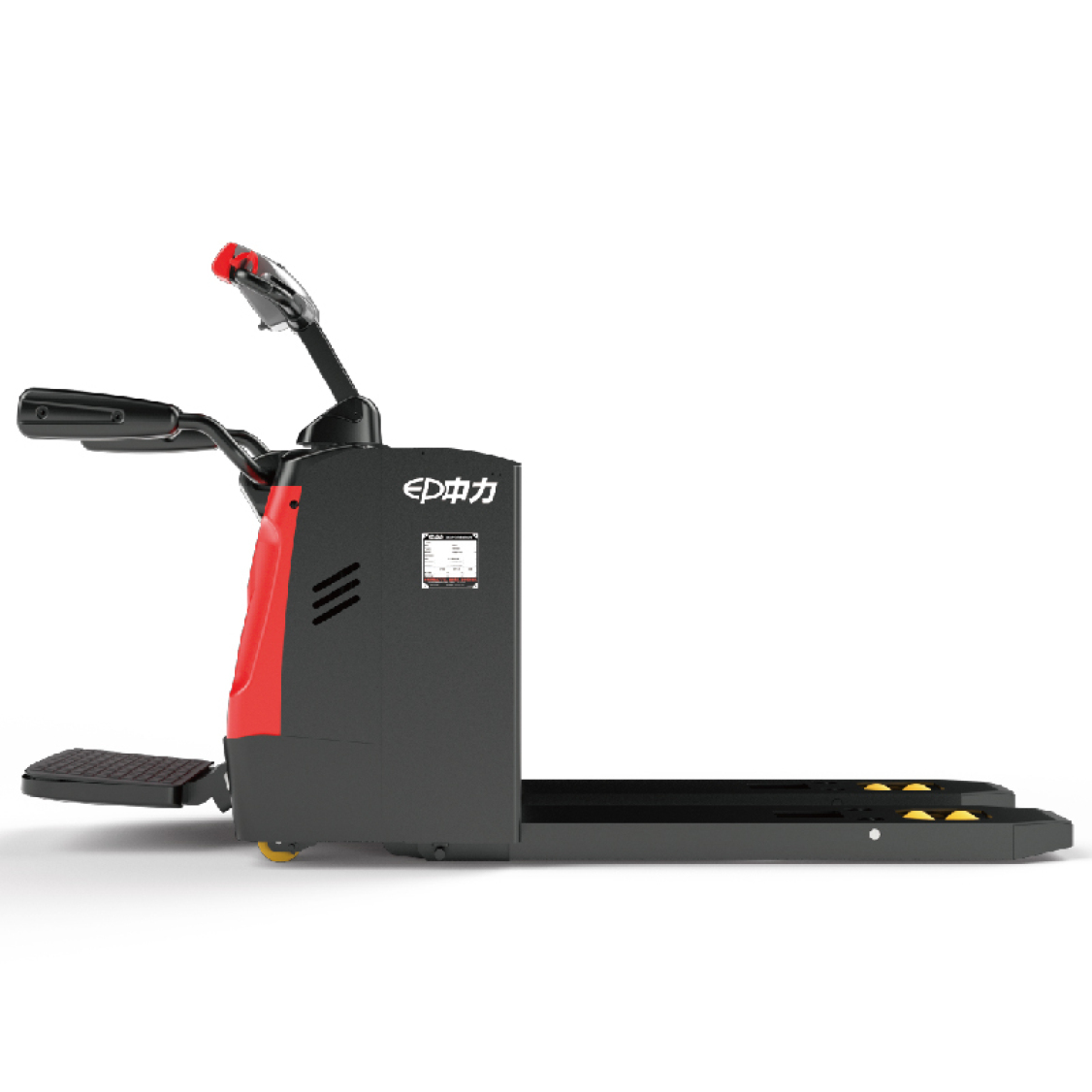

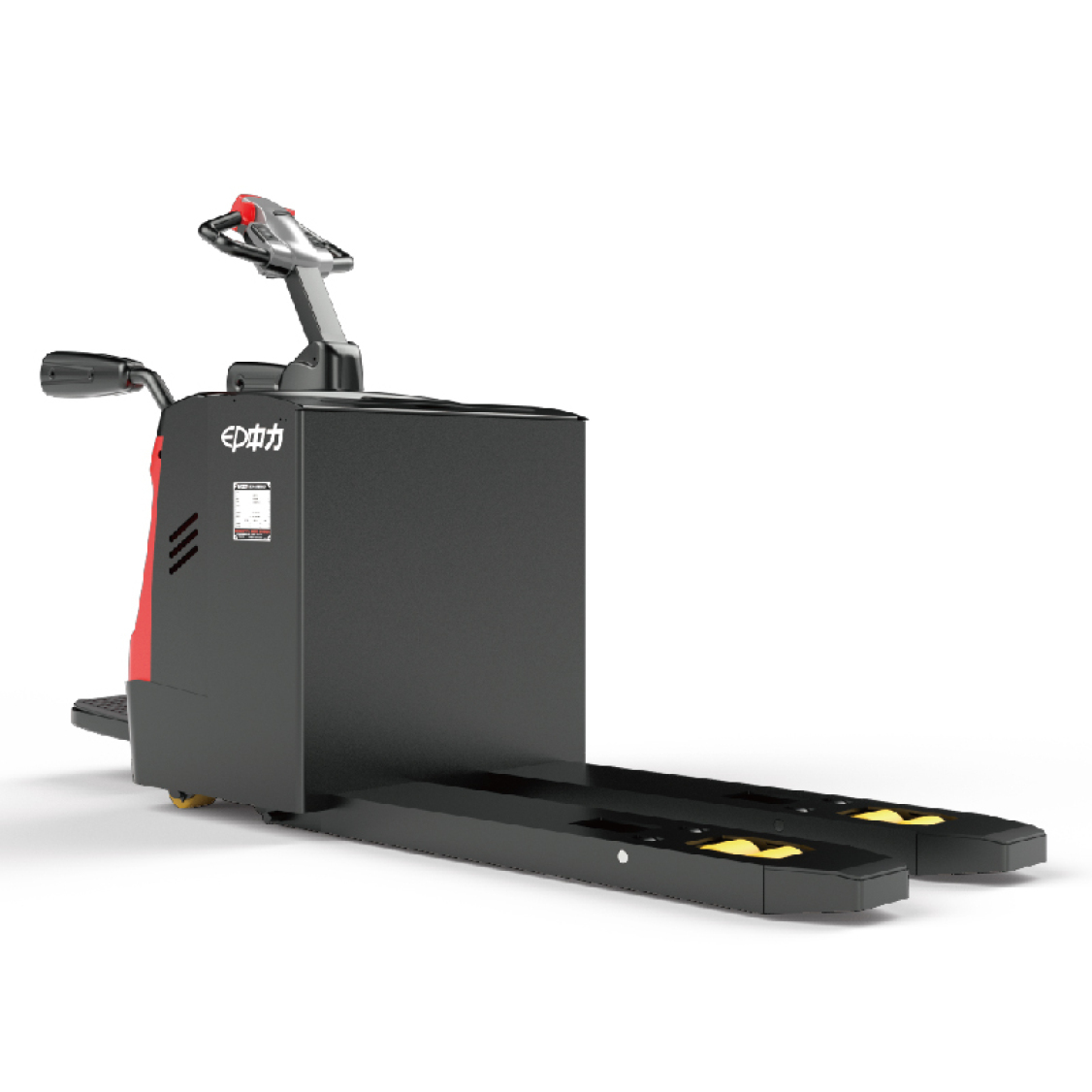

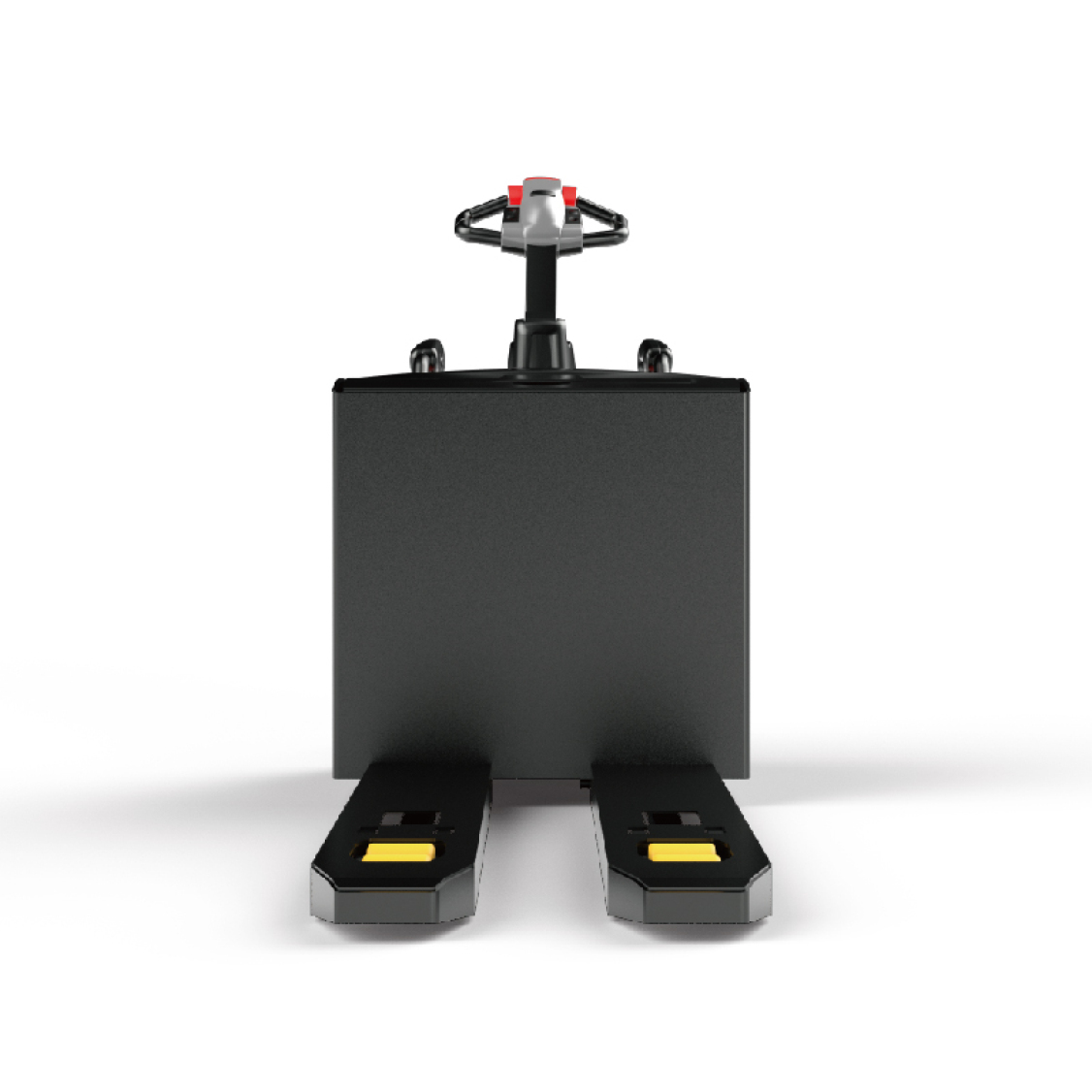

5.0 Ton Electric Pallet Truck RPL501

The 5.0 Ton Electric Pallet Truck RPL501 is a heavy-duty, industrial-grade electric material handling device, specifically designed for efficient transportation, loading, and unloading of ultra-heavy palletized goods up to 5.0 tons. Below is its detailed introduction:

Core Performance Parameters

- Rated Load: 5000kg (5.0T), with a standard load center distance of 600mm (specific parameters subject to official configuration; extended load center options available for special goods).
- Power Source: Equipped with a large-capacity maintenance-free lead-acid battery (common specifications: 48V/250Ah or 80V/180Ah) to support long-term heavy-duty operations; a small number of customized versions offer high-energy lithium-ion batteries (e.g., 48V/150Ah) for faster charging.
- Travel Speed: 4.0km/h (no-load) and 3.5km/h (loaded), with stepless speed regulation and slow-start function to avoid goods shifting or tilting during transportation.
- Lifting Performance: Full-load lifting speed is about 0.018m/s, no-load lifting speed is approximately 0.025m/s; standard maximum lifting height is 130mm (focused on horizontal handling), and minimum fork height is 95mm for easy insertion under heavy pallets.
- Charging & Endurance: Lead-acid battery versions take 10-14 hours for a full charge, supporting 4-6 hours of continuous ultra-heavy-duty operation; lithium-ion battery versions enable fast charging (4-6 hours full charge) with 5-7 hours of continuous working time.

Key Features

- Ultra-Heavy-Duty Structure: Adopts a thickened integral steel frame (thickness ≥8mm) and high-strength alloy steel forks (thickness ≥22mm), with reinforced fork tips and bottom supports to resist bending and deformation under heavy loads, suitable for frequent transportation of ultra-heavy goods (e.g., metal ingots, large machinery parts).
- High-Power Drive System: Equipped with a 5.5kW high-torque AC drive motor (with overload protection), ensuring strong power output even under full load; the motor has an IP55 dustproof and waterproof rating, adapting to harsh industrial environments (e.g., workshops with slight dust or moisture).
- High-Stability Hydraulic System: Uses a high-pressure dual-cylinder hydraulic pump and imported high-wear-resistance seals, enabling slow, steady lifting/lowering of heavy goods to prevent sudden drops; the hydraulic oil is resistant to high and low temperatures, ensuring normal operation in -10°C to 45°C environments.
- Ergonomic & Safe Operation: Features a heavy-duty anti-fatigue control handle with adjustable angle (0-100°) and large-size operation buttons (easy to press with gloves); the handle is equipped with a vibration-damping structure to reduce hand fatigue during long shifts.
- Multi-Layer Safety Protection: Standard configurations include emergency power-off switch, overload protection (automatic shutdown when exceeding 110% of rated load), mechanical parking brake (with anti-slip function), front/rear anti-collision rubber buffers (thickness ≥50mm), and fork anti-drop device; some models add a load weight display for real-time load monitoring.

Dimensional Parameters (Typical Values)

- Overall length: 2450mm
- Overall width: 920mm (fork outer width; optional 780mm for narrow heavy pallets)
- Fork length: 1300mm (optional 1220mm/1400mm for different pallet sizes)
- Turning radius: 2300mm
- Height of forks after lowering: 95mm
- Overall weight (without battery): Approximately 1200kg

Application Scenarios

Mainly used in heavy industry fields such as steel mills, machinery manufacturing plants, large-scale foundries, and port logistics yards. It is dedicated to the horizontal transportation, loading, and unloading of 5.0-ton ultra-heavy palletized goods, such as steel plates, large castings, heavy mechanical components, and bulk chemical raw material barrels.
