24V 120Ah Powered Electric Pallet Trolley Truck Manganese Steel Forks OEM

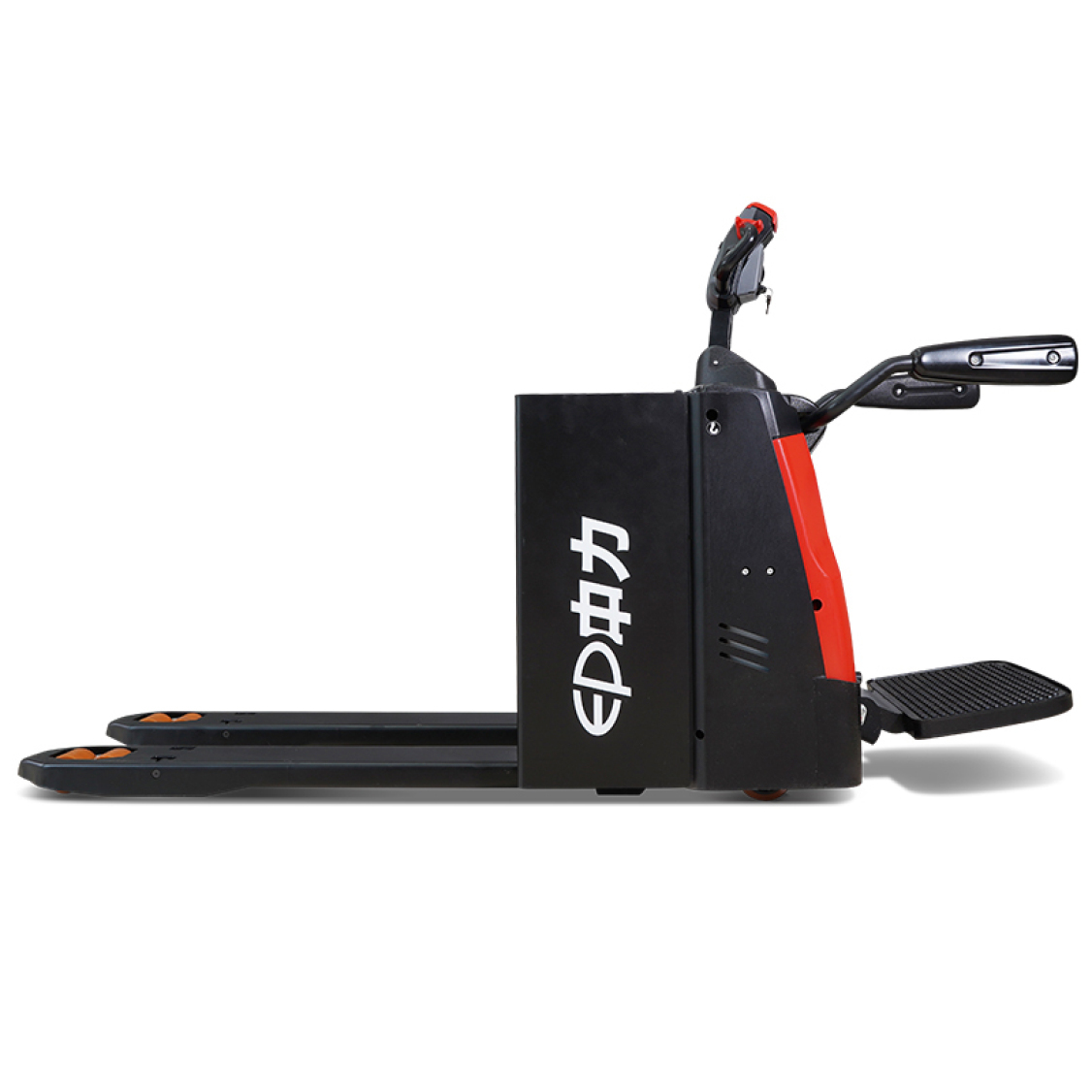

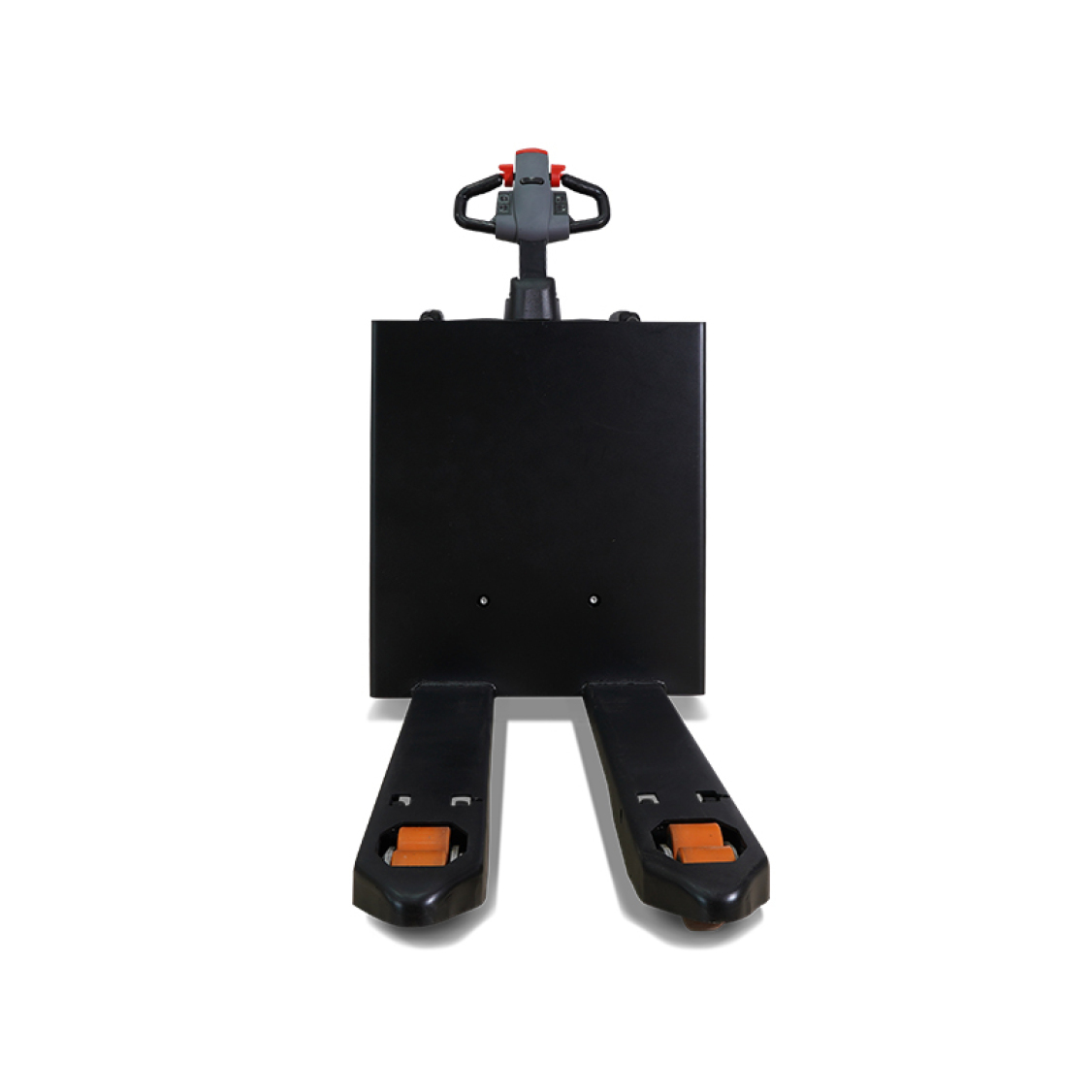

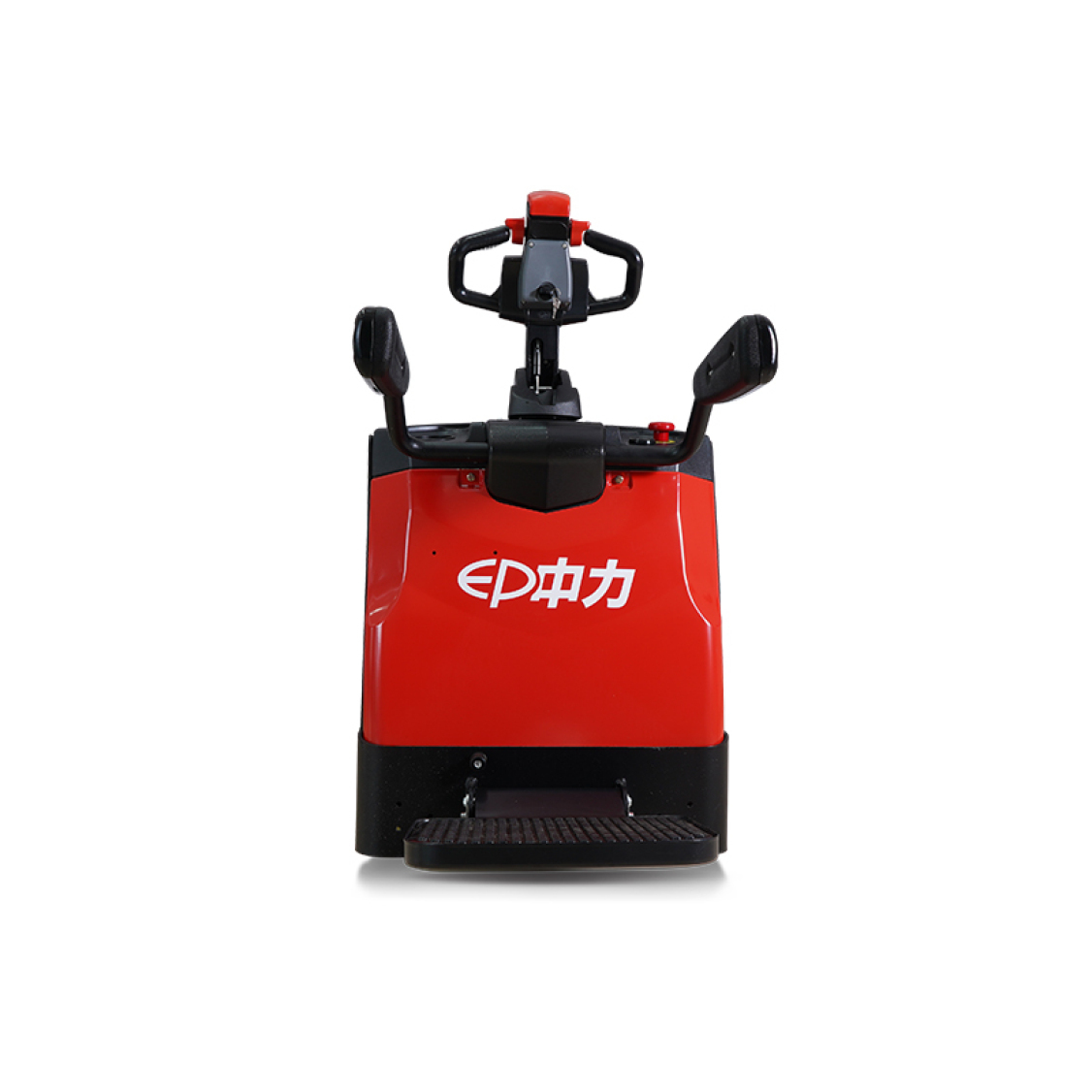

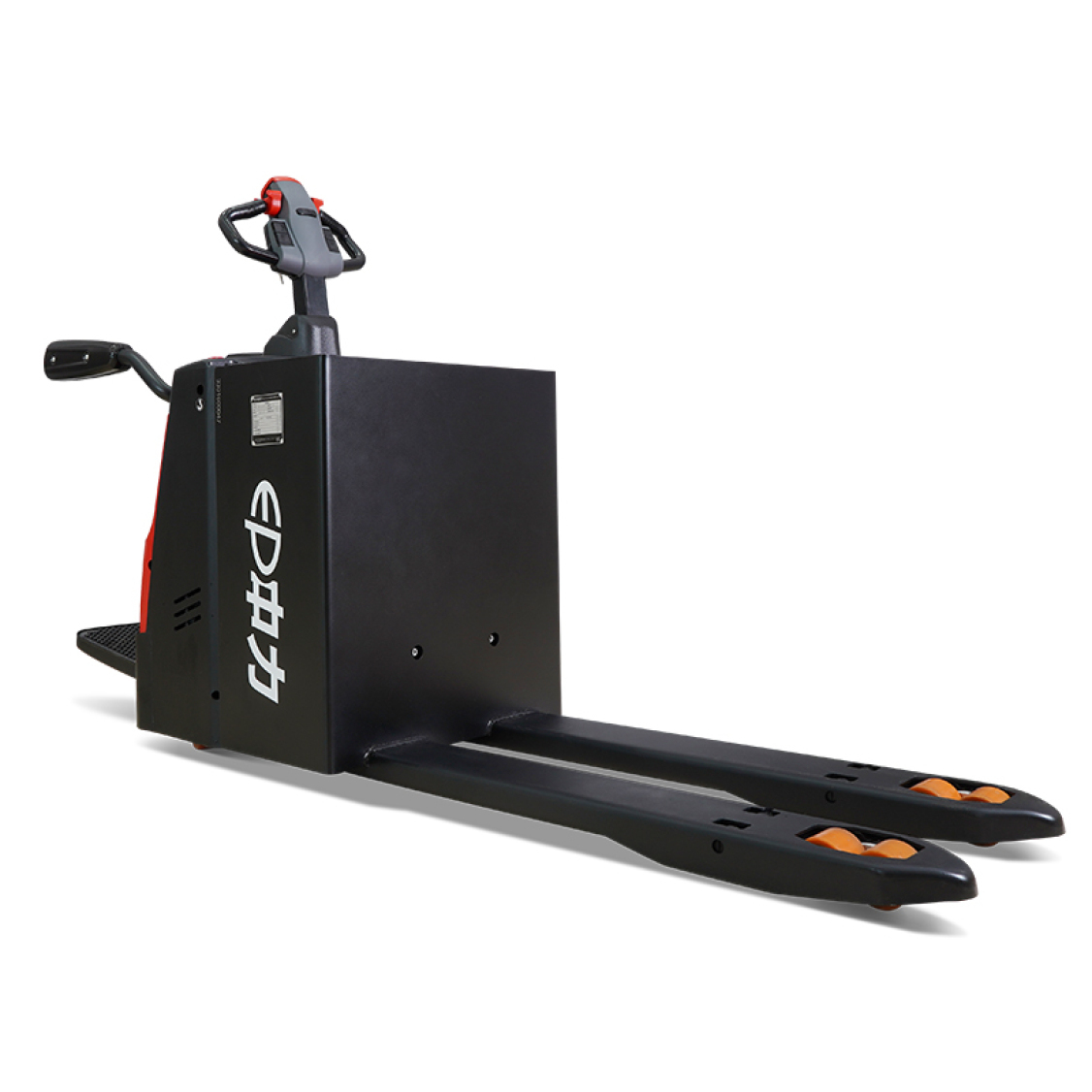

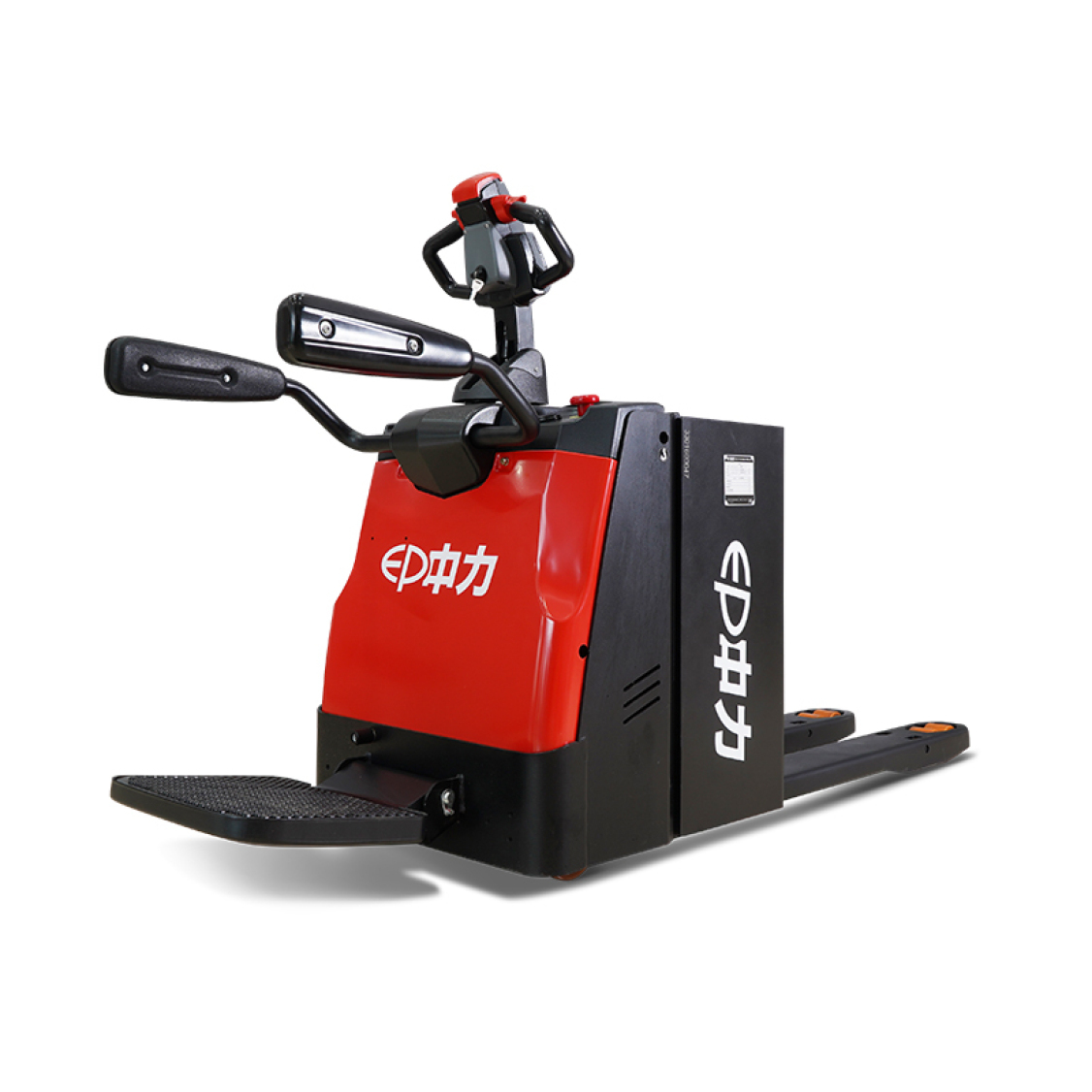

2T Electric Pallet Truck RPL201 & RPL201H (Lead-Acid Battery Version)

The 2T Electric Pallet Truck RPL201 and RPL201H (Lead-Acid Battery Version) are practical electric material handling devices developed for efficient transportation, loading, and unloading of palletized goods with a maximum weight of 2 tons. Their detailed introduction is as follows:

Core Performance Parameters

- Rated Load: Both models have a rated load of 2000kg (2T), with a standard load center distance of 600mm (subject to official configuration).
- Power Source: Equipped with maintenance-free lead-acid batteries (common specifications: 24V/120Ah or 24V/160Ah; specific parameters depend on the model and official settings). The lead-acid battery provides stable power output, suitable for medium-intensity daily operations.
- Travel Speed:
- RPL201: Typically 5.0km/h (no-load) and 4.5km/h (loaded);
- RPL201H: Slightly optimized for speed, usually 5.5km/h (no-load) and 5.0km/h (loaded). Both support stepless speed regulation for smooth start and stop.
- Lifting Performance:
- RPL201: Full-load lifting speed is about 0.022m/s, no-load lifting speed is about 0.030m/s;
- RPL201H: Full-load lifting speed is approximately 0.025m/s, no-load lifting speed is around 0.032m/s. The standard maximum lifting height for both is 125mm (focused on horizontal handling), and the minimum fork height is 85mm for easy pallet insertion.
- Charging & Endurance: A full charge takes 8-10 hours (using a matching lead-acid battery charger). Under normal working conditions, both models can support 6-8 hours of continuous operation, meeting the needs of a full work shift.

Key Features

- Stable Lead-Acid Power Supply: The lead-acid battery has mature technology, strong compatibility, and low replacement cost. It can maintain stable power in environments with large temperature fluctuations (suitable for general indoor warehouses and workshops).
- Durable Structure: Both models adopt reinforced steel frames and high-strength manganese steel forks, with strong load-bearing capacity and impact resistance. They can withstand frequent use in industrial scenarios.
- Easy Operation: Equipped with ergonomic control handles, integrating buttons for lifting, lowering, forward, and backward functions. The handle angle is adjustable, and the operation force is small, reducing operator fatigue during long-term use.
- Reliable Safety Protection: Standard configurations include emergency power-off switches, overload protection, and mechanical parking brakes. The RPL201H adds an anti-collision buffer at the front of the fork (depending on the model) to further avoid damage to goods and equipment.
- Cost-Effective Maintenance: The lead-acid battery and core components (such as drive motors and hydraulic pumps) have simple structures and wide maintenance networks, making daily inspection and repair more convenient and cost-effective.

Dimensional Parameters (Typical Values)

- RPL201: Overall length 1850mm, overall width 730mm, turning radius 1680mm;
- RPL201H: Overall length 1920mm, overall width 730mm, turning radius 1700mm.
(Note: Specific dimensions are subject to official data, and there may be slight differences between different production batches.)

Application Scenarios

Both models are widely used in indoor places such as manufacturing workshops, logistics warehouses, retail distribution centers, and supermarket backyards. They are mainly used for horizontal transportation, loading, and unloading of 2-ton palletized goods (such as raw materials, finished products, and daily necessities), and are especially suitable for enterprises that prioritize cost-effectiveness and have mature lead-acid battery charging and maintenance conditions.
