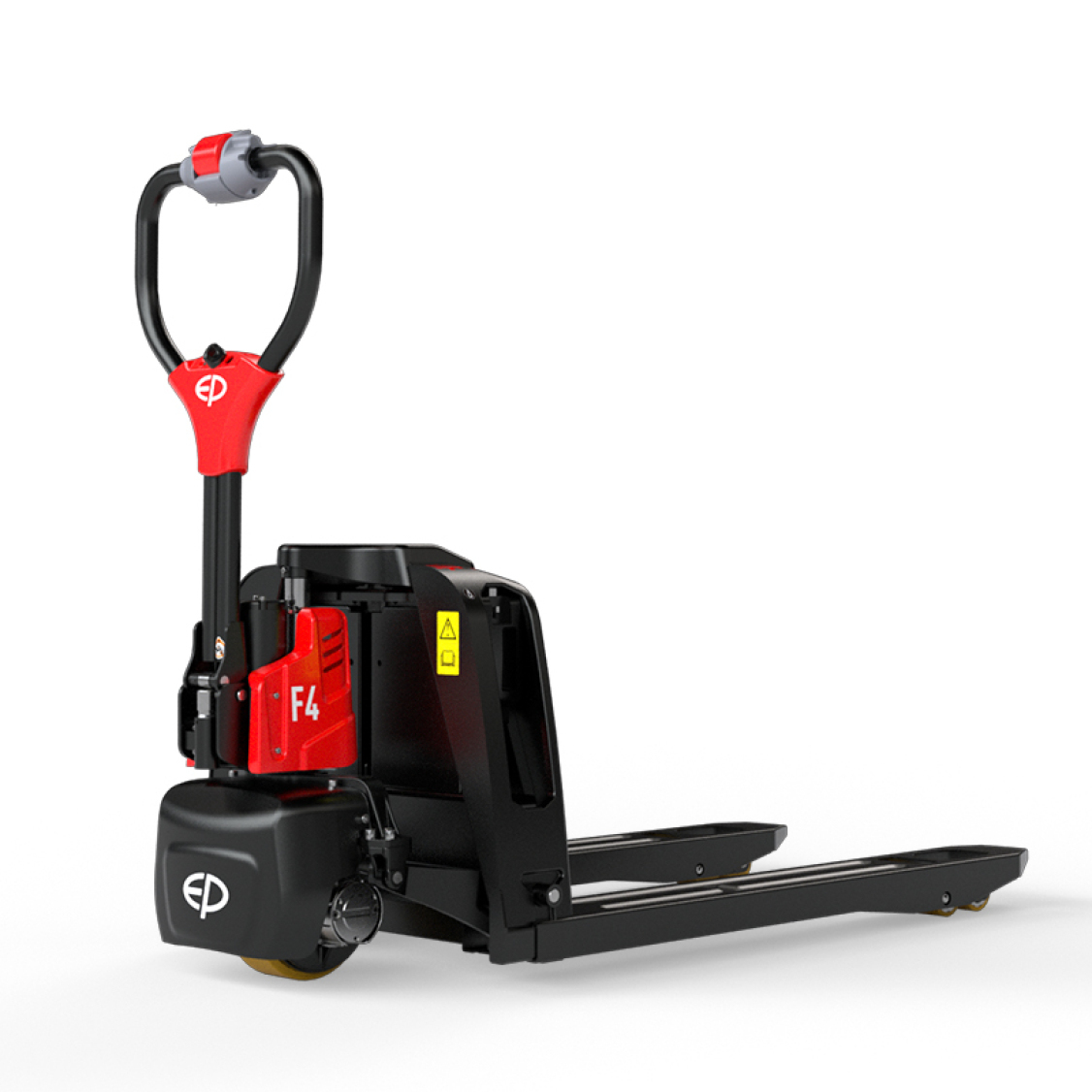

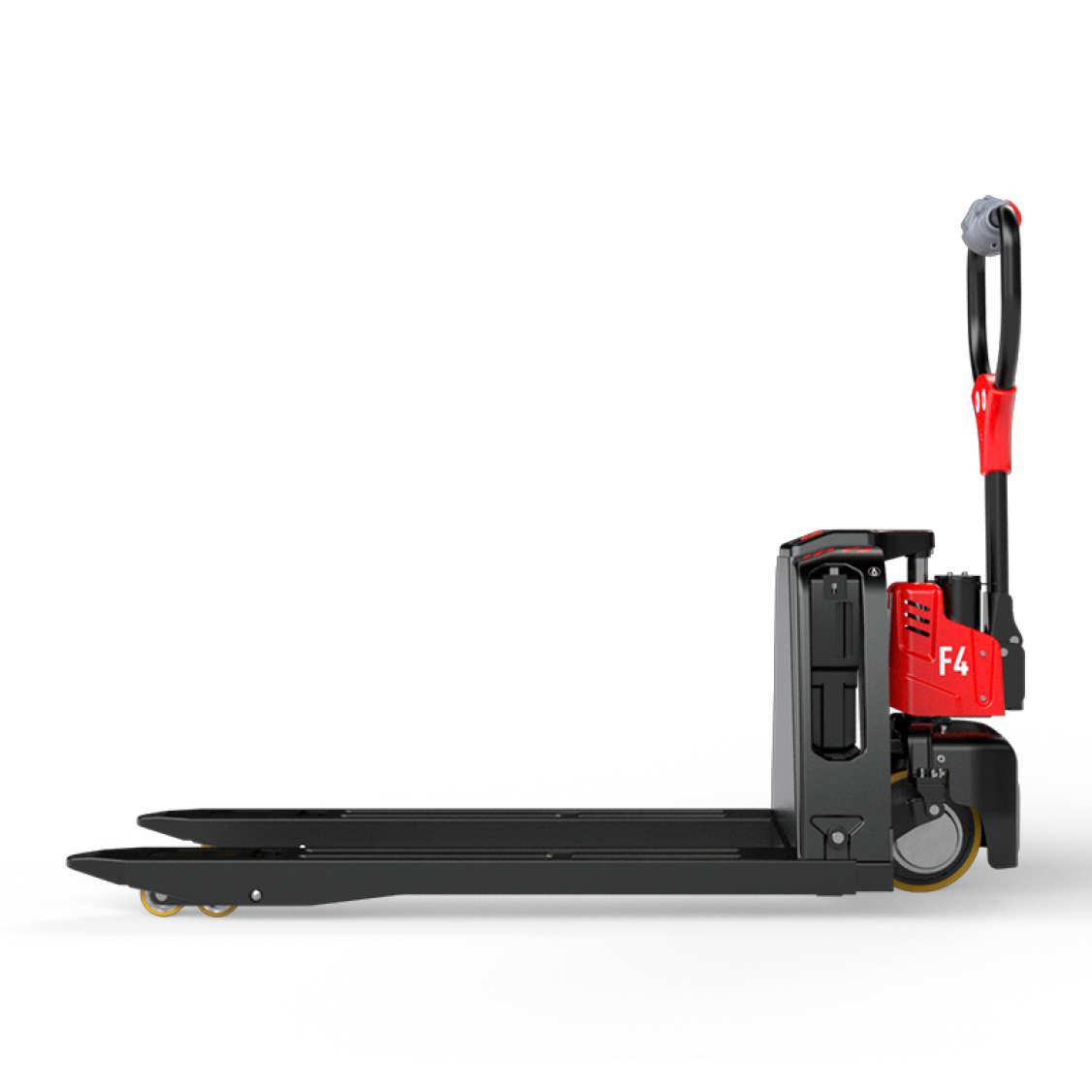

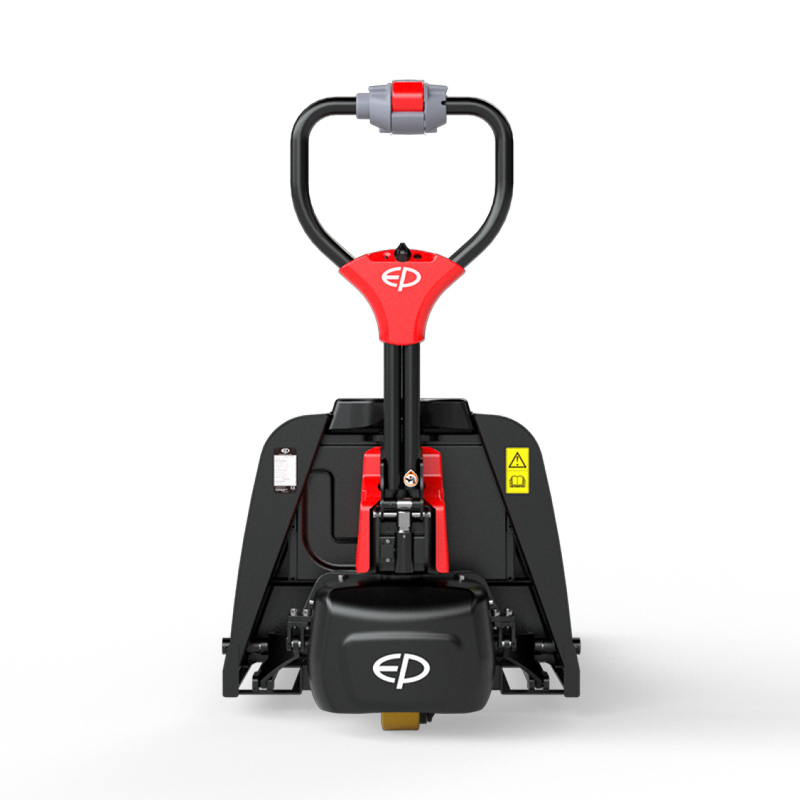

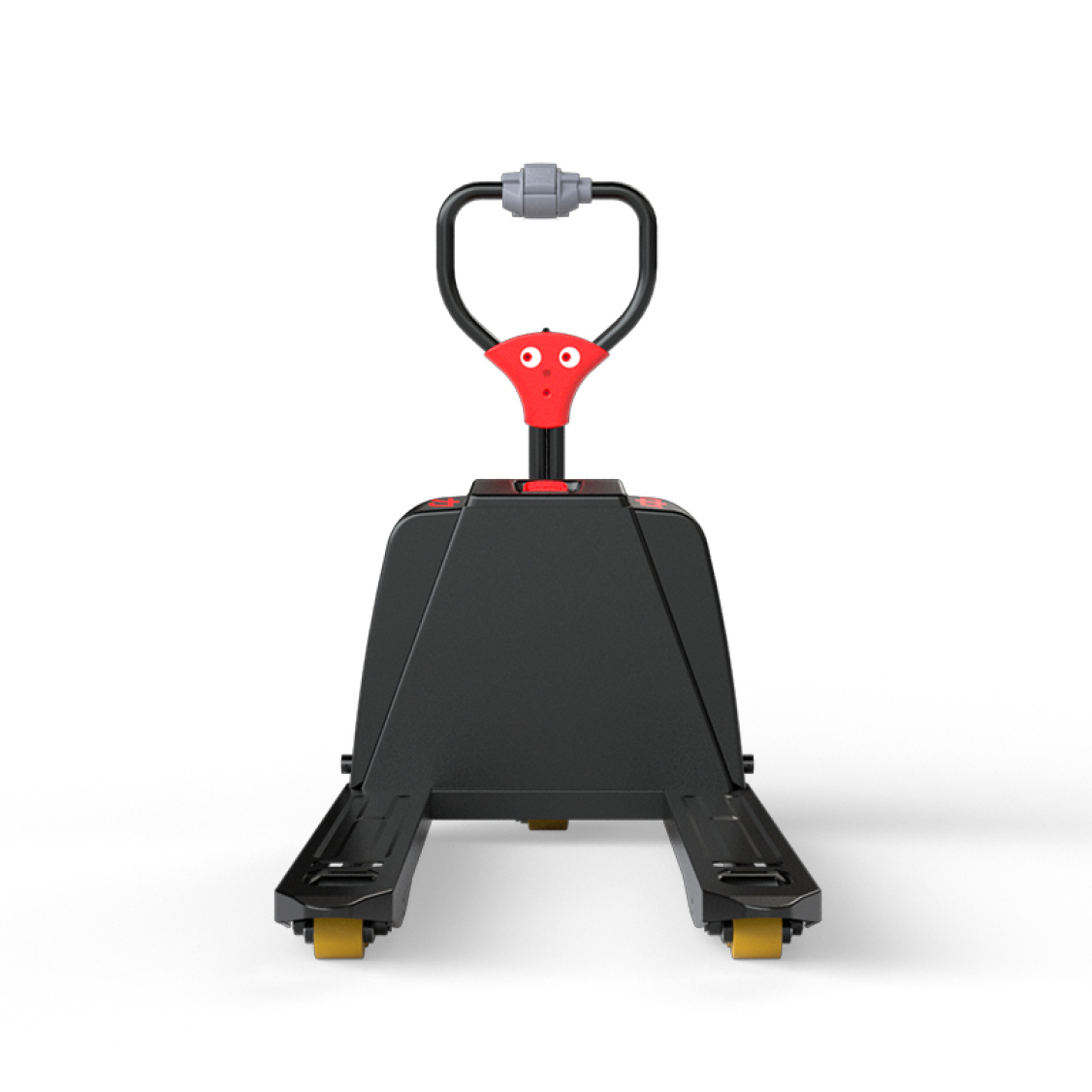

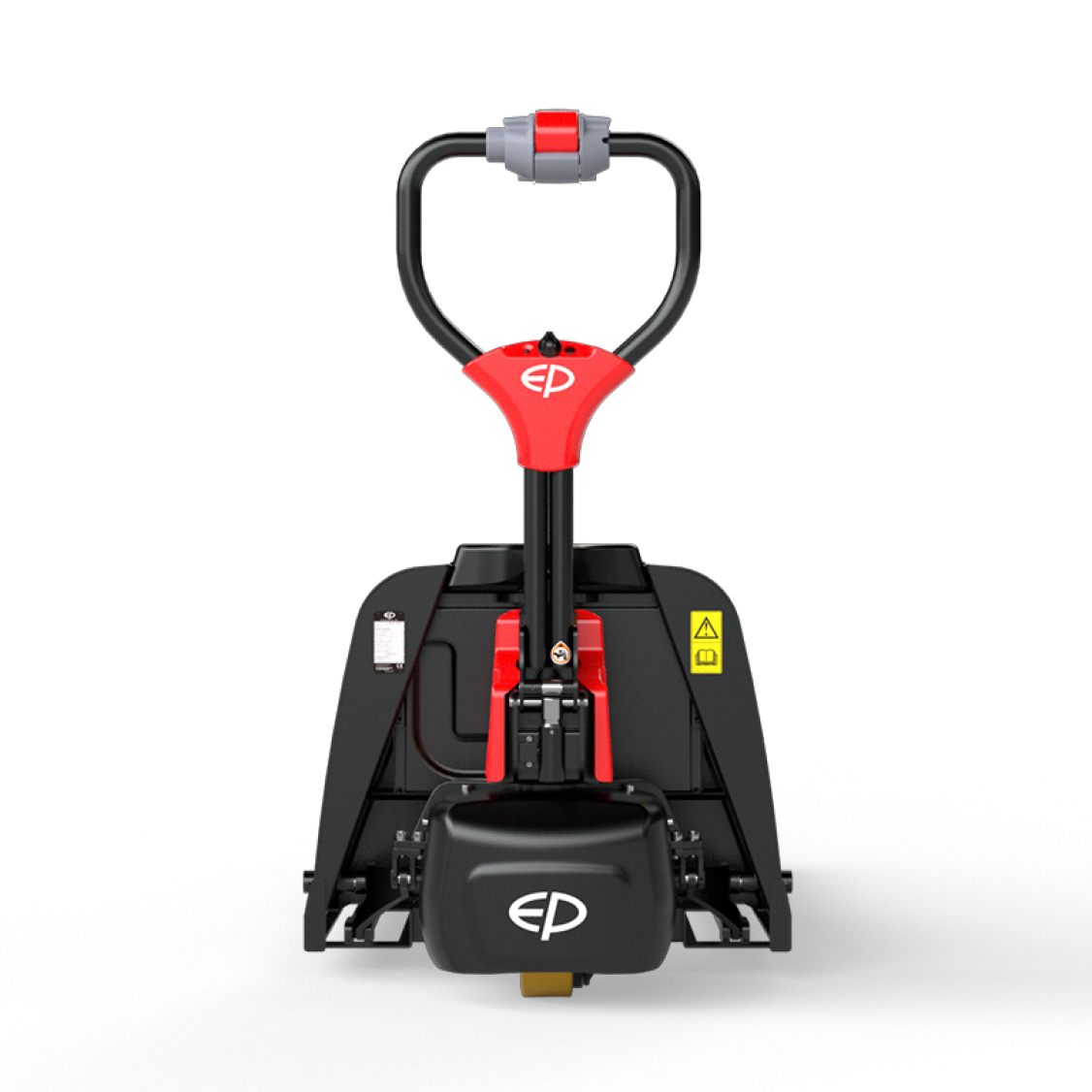

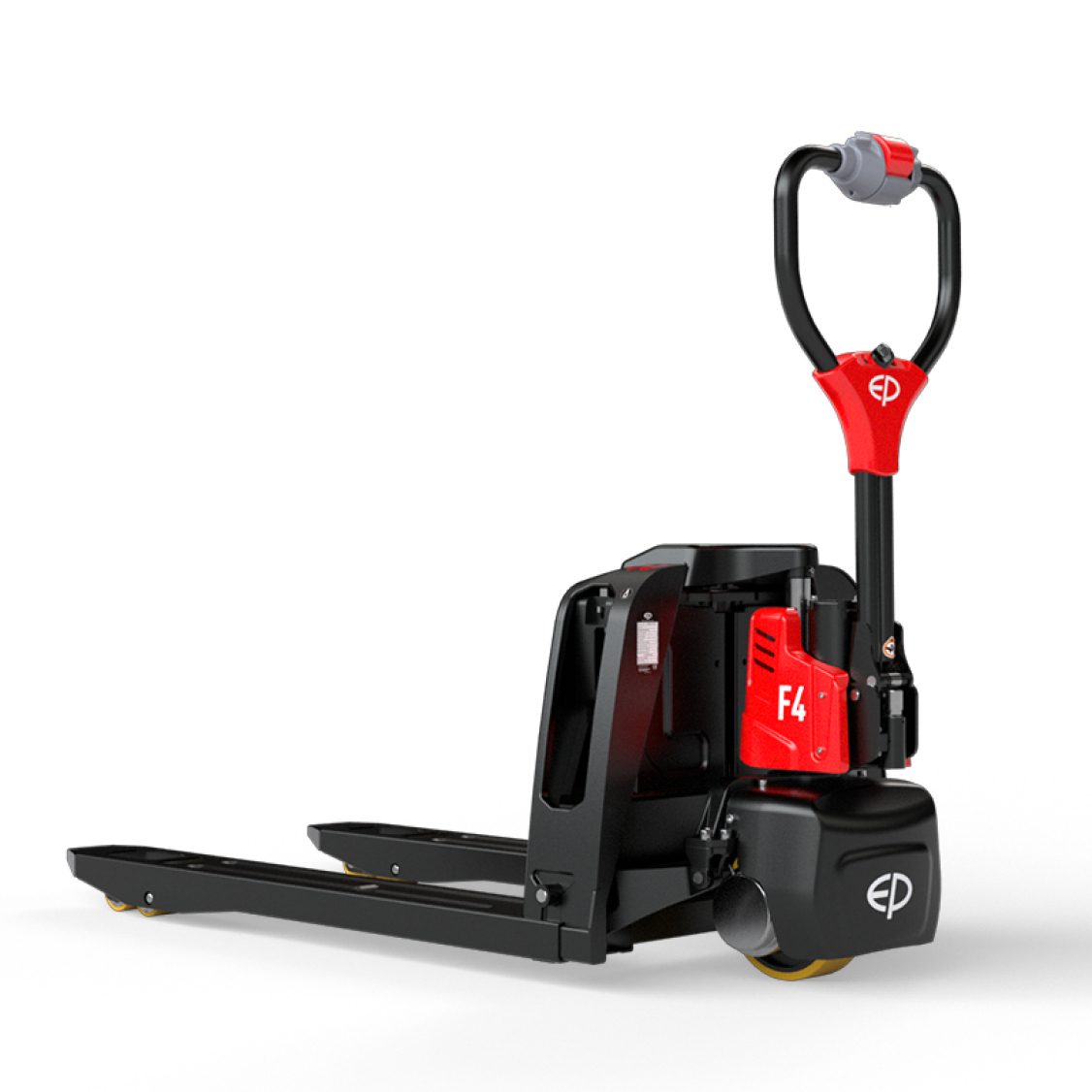

Walkie Pallet Truck: 1.5T Lithium-Ion Electric Pallet Truck Product Introduction
Performance Parameters
• Load Capacity: Rated load is 1500kg, tailored for light to medium cargo handling scenarios, ideal for small warehouses, retail backends, electronics workshops, and fresh logistics (for goods like cartons, small parts, and perishables).
• Power System: Equipped with a 0.6kW-0.75kW high-efficiency DC drive motor and a 0.7kW-0.8kW lifting motor, powered by a 24V/50Ah-60Ah lithium iron phosphate (LiFePO₄) battery. It supports 6-8 hours of continuous operation and features fast charging (80% charge in 1.5-2 hours via a 220V dedicated charger).
• Travel & Lifting Speed: Travel speed is 3.5km/h (fully loaded) and 4km/h (unloaded); lifting speed is 19mm/s (fully loaded) and 26mm/s (unloaded); lowering speed is 36mm/s (fully loaded) and 29mm/s (unloaded), balancing efficiency and stability in narrow spaces.
• Key Dimensions: Minimum turning radius is 1400mm-1450mm, adaptable to 1.8m-wide aisles; overall length is 1550mm-1600mm, and standard fork length is 1220mm (optional 1100mm), compatible with most standard pallets (1200×800mm/1200×1000mm).
• Weight Advantage: Net weight is about 280kg-320kg, 15%-20% lighter than lead-acid battery models of the same tonnage, making it easier to move and store.
Product Features
• Lithium-Ion Battery Core Advantages:
◦ Lightweight & Space-Saving: Lithium battery is 50% lighter than lead-acid batteries of the same capacity, reducing the vehicle’s overall weight and saving storage space.
◦ Long Lifespan: Cycle life reaches 2000+ times (3-5 years of service), 2-3 times that of lead-acid batteries; no memory effect, supporting partial charging without affecting battery life.
◦ Safe & Eco-Friendly: LiFePO₄ battery has overcharge, over-discharge, and short-circuit protection; no heavy metal pollution, meeting environmental protection requirements for indoor operations.
• Compact & Flexible Maneuverability: Streamlined body design and small turning radius allow easy navigation in narrow areas (e.g., supermarket back warehouses, small workshop aisles) where large handling equipment cannot enter.
• Intelligent Operation Experience: Equipped with a digital LCD display to show real-time battery level, working time, and fault codes (e.g., low battery, motor overload) for quick troubleshooting. Supports one-key lifting/lowering and two-speed adjustment (low for precision, high for efficiency), enabling one-hand operation to reduce labor intensity.
• Reliable Safety Configuration:
◦ Standard electromagnetic brake (automatic braking when releasing the handle) and prominent emergency power-off switch.
◦ Added fork anti-drop locking pins and non-slip pedal (160mm width) to prevent cargo slipping and operator foot injury; the battery compartment has a flame-retardant shell for enhanced safety.
• Low Maintenance Cost: Lithium battery is maintenance-free (no water addition or electrolyte replenishment); modular design for electrical components (centralized wiring) simplifies inspection and replacement. Key parts like polyurethane drive wheels and high-strength steel forks have strong wear resistance, extending the vehicle’s service life.
