Load Capacity: | 1500kg | Battery Type: | Lead-acid |
---|---|---|---|
Turning Radius: | 1450mm | Min. Lifting Height: | 85mm |
Travel Speed: | 4.5km/h | Wheel Type: | Polyurethane |
Fork Length: | 1150mm | Max. Lifting Height: | 200mm |
Charging Time: | 8-10 Hours | Color: | Yellow |
Weight: | 200kg | Model: | EPT-15 |
Battery Capacity: | 24V/210Ah | Fork Width: | 550mm |
Highlight: | IP54 waterproof Electric Pallet Trolley,2500kg Electric Pallet Trolley,IP54 waterproof walkie pallet jack |

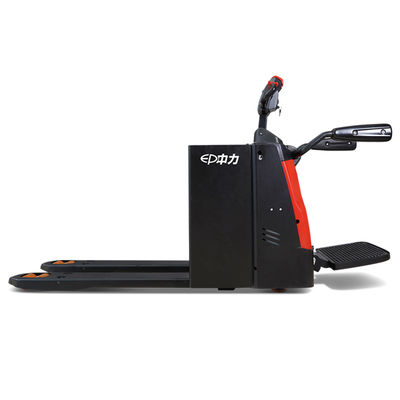

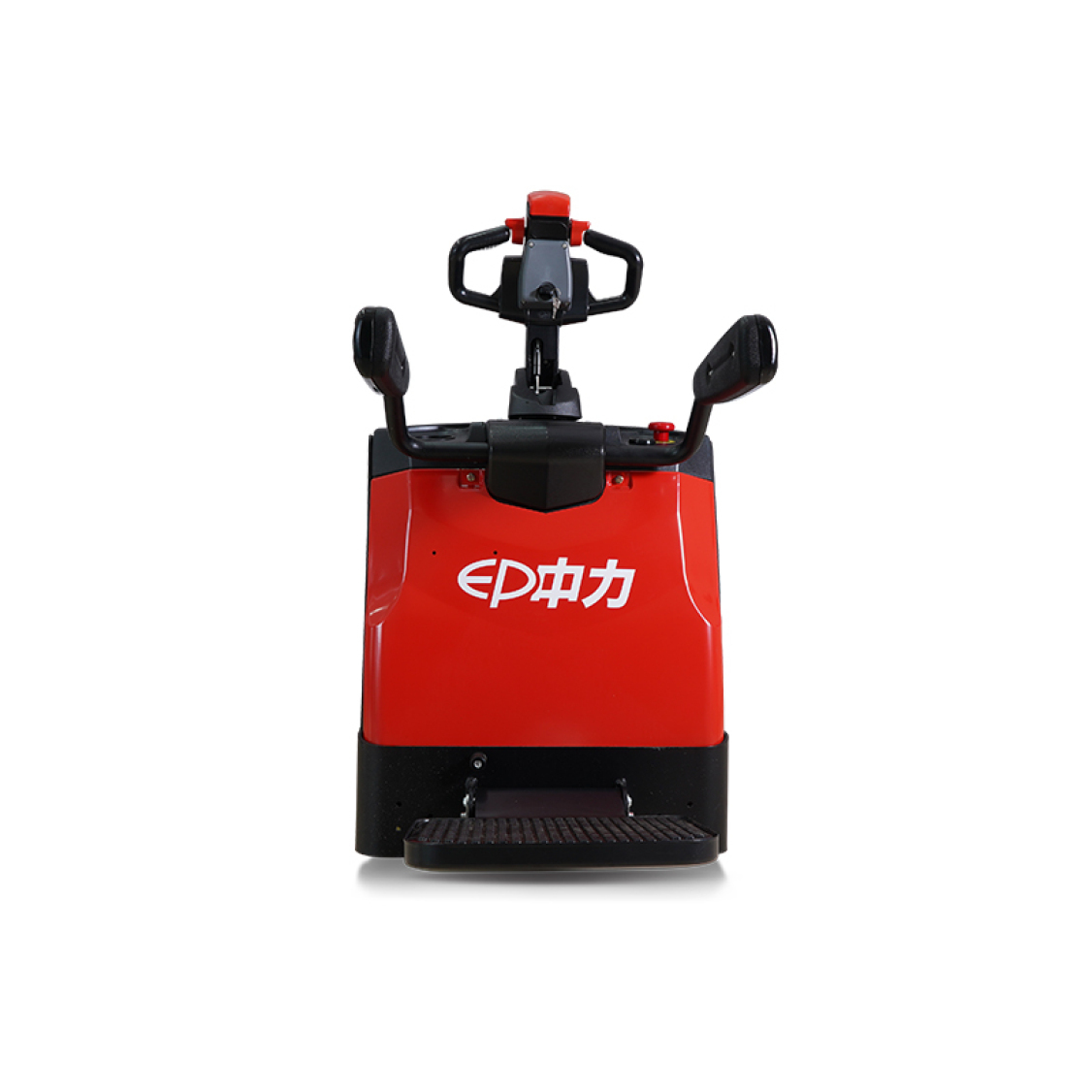

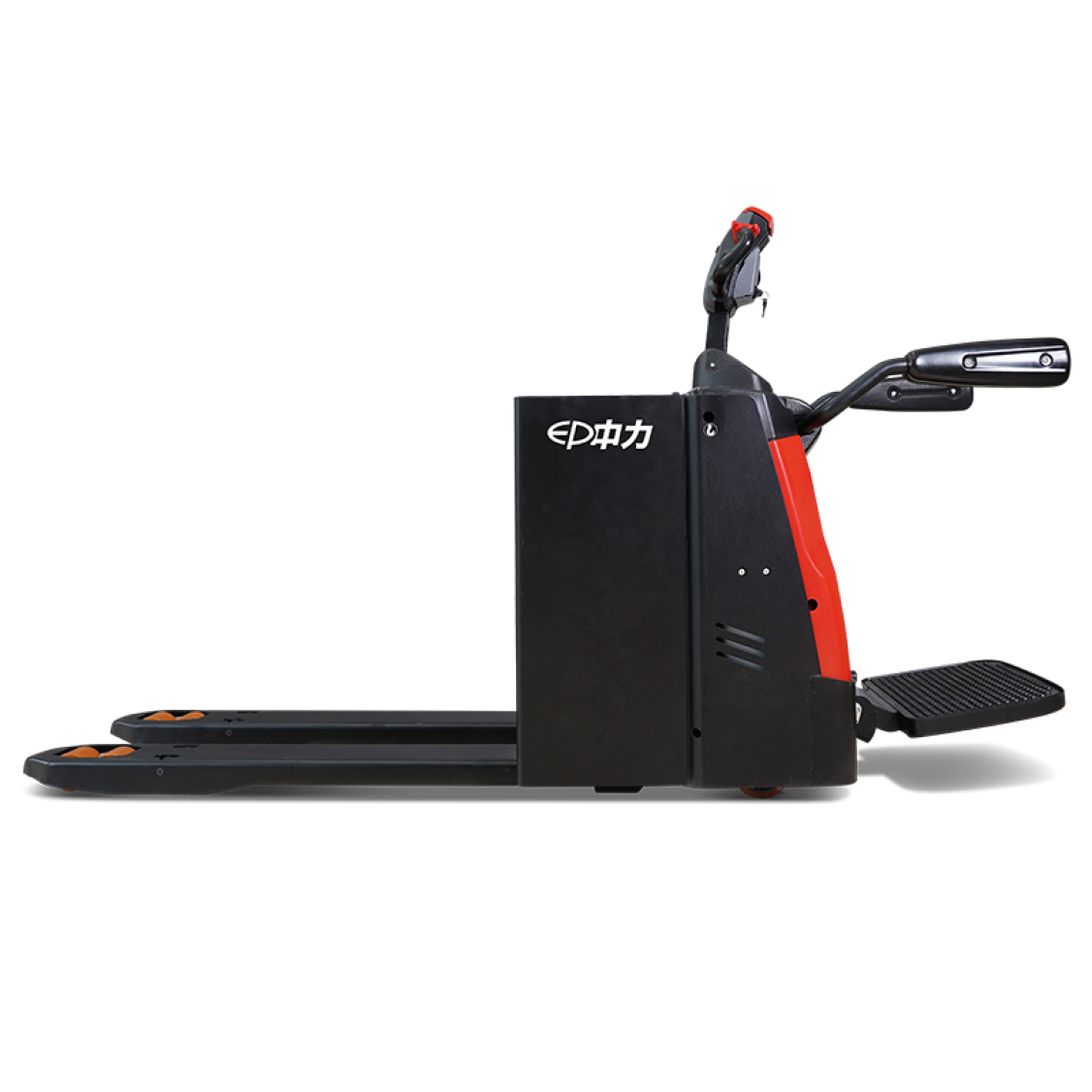

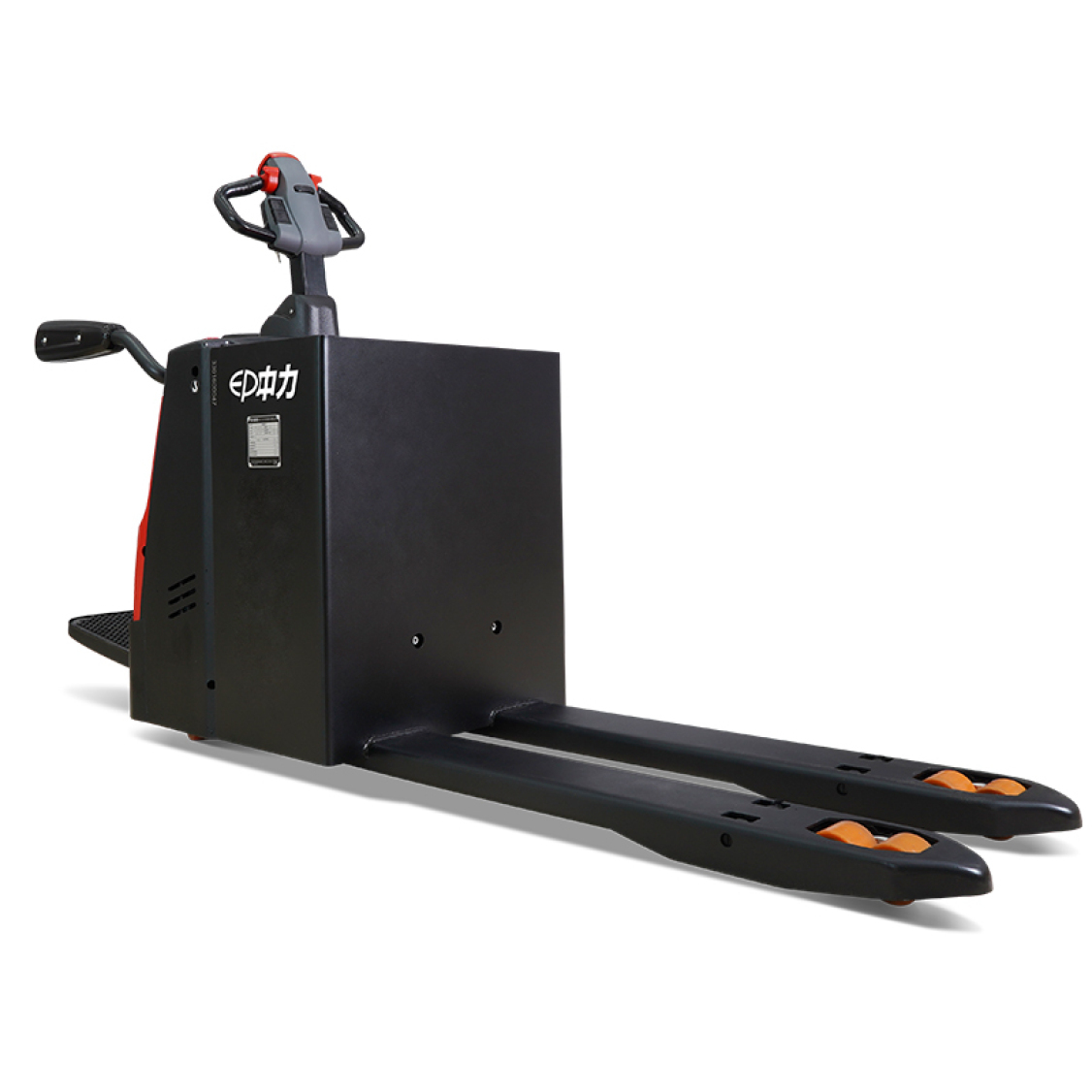

2.5T Electric Pallet Truck RPL251
The 2.5T Electric Pallet Truck RPL251 is a medium-heavy-duty electric material handling device, designed for efficient transportation, loading, and unloading of palletized goods up to 2.5 tons. Below is its detailed introduction:
Core Performance Parameters
- Rated Load: 2500kg (2.5T), with a standard load center distance of 600mm (specific parameters subject to official configuration).
- Power Source: Usually equipped with a maintenance-free lead-acid battery (common specifications: 48V/150Ah) for stable power output; some versions offer optional lithium-ion batteries (e.g., 48V/80Ah) to meet diverse needs for charging speed and endurance.
- Travel Speed: 5.0km/h (no-load) and 4.5km/h (loaded), supporting stepless speed regulation to ensure smooth acceleration/deceleration and avoid goods jolting during transportation.
- Lifting Performance: Full-load lifting speed is approximately 0.021m/s, no-load lifting speed is about 0.029m/s; standard maximum lifting height is 125mm (focused on horizontal handling), and minimum fork height is 85mm for easy insertion under pallets.
- Charging & Endurance: Lead-acid battery versions take 8-10 hours for a full charge, supporting 6-7 hours of continuous medium-heavy-duty operation; lithium-ion battery versions enable fast charging (3-4 hours full charge) with 7-8 hours of continuous working time.
Key Features
- Balanced Load-Bearing Design: Adopts a reinforced steel frame (thickness ≥5mm) and high-strength manganese steel forks (thickness ≥14mm), striking a balance between load-bearing capacity (2.5T) and structural flexibility, suitable for both heavy and regular goods transportation.
- Efficient Drive System: Equipped with a 2.5kW high-torque AC drive motor, ensuring stable power output even under full load; the motor’s dustproof and waterproof design (IP54 rating) extends its service life in general industrial environments.
- Smooth Hydraulic Operation: Uses a high-precision hydraulic pump and wear-resistant seals, enabling quiet and steady lifting/lowering of goods, and reducing oil leakage risks and maintenance costs.
- Ergonomic Control: Features an adjustable-angle control handle (0-110°) with integrated buttons for lifting, lowering, forward, and backward functions; the handle grip is non-slip and padded, reducing operator fatigue during long shifts.
- Comprehensive Safety Protection: Standard configurations include an emergency power-off switch, overload protection (automatic power limitation when overloaded), mechanical parking brake, and front anti-collision buffer; some models add a fork anti-tilt device to enhance operational safety.
Dimensional Parameters (Typical Values)
- Overall length: 2000mm
- Overall width: 780mm (fork outer width; optional 685mm for narrow pallets)
- Fork length: 1220mm (optional 1150mm/1300mm)
- Turning radius: 1850mm
- Height of forks after lowering: 85mm
Application Scenarios
Widely used in manufacturing workshops (e.g., light machinery, electronic equipment), logistics warehouses (medium-weight goods storage), and large supermarket distribution centers. It is mainly used for horizontal transportation, loading, and unloading of 2.5-ton palletized goods, such as semi-finished industrial parts, large batches of daily necessities, and medium-sized packaging materials.
