OEM Electric Pallet Trolley Center Control Rider Jack Hydraulic Lifting System

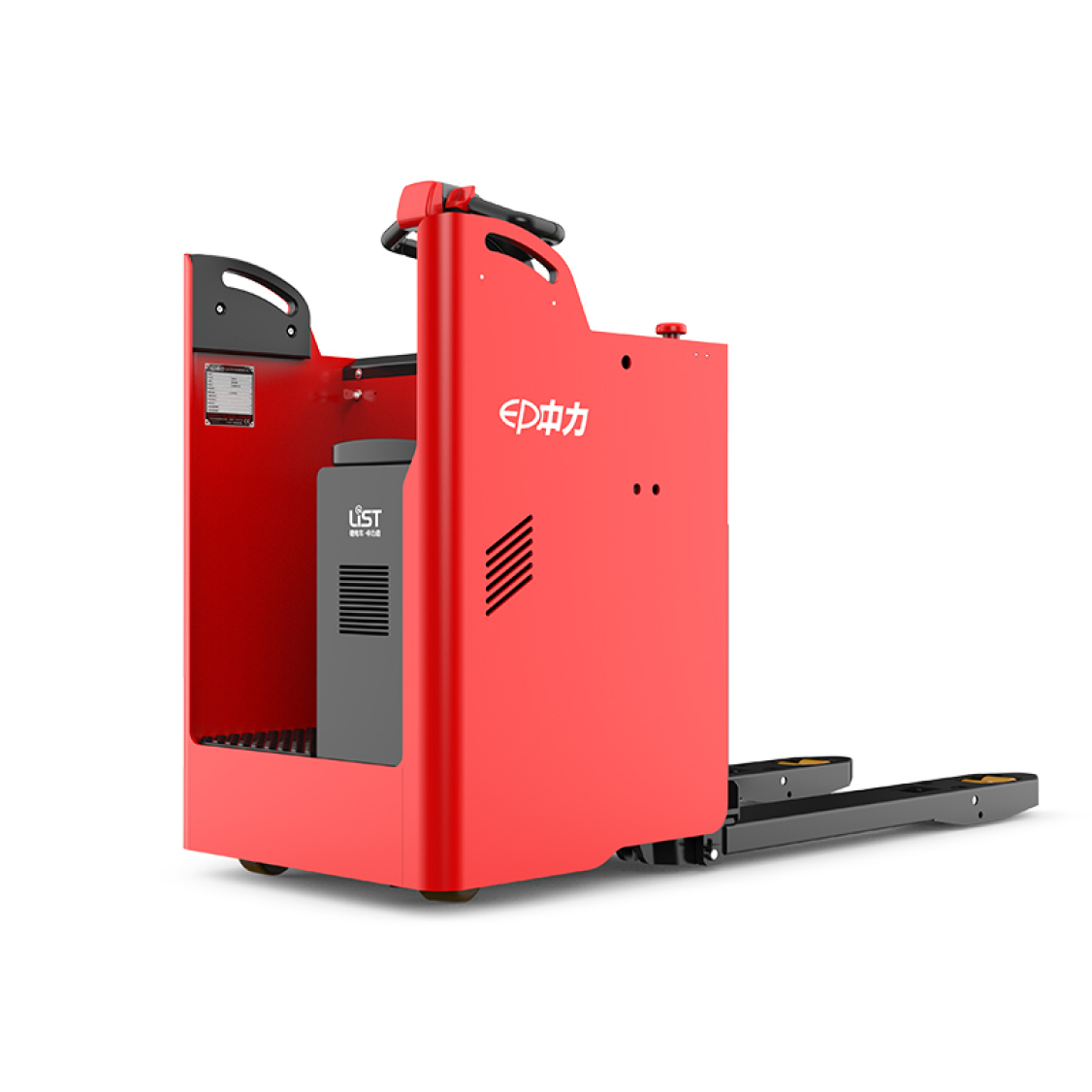

2.0 Ton Electric Pallet Truck EPT20-SR (King Kong Series)

The 2.0 Ton Electric Pallet Truck EPT20-SR, a member of the "King Kong Series" (a product line known for durability), is a professional electric material handling device designed for efficient transportation, loading, and unloading of palletized goods up to 2.0 tons. Below is its detailed introduction:

Core Performance Parameters

- Rated Load: 2000kg (2.0 tons)
- Power Source: Generally configured with a maintenance-free lead-acid battery (common specifications: 48V/20Ah or 48V/25Ah; specific parameters subject to official factory settings). Some versions offer optional lithium-ion batteries for flexible power selection to meet different endurance needs.
- Travel Speed: Typically 4.0km/h (no-load) and 3.8km/h (loaded), with stepless speed regulation. This ensures smooth acceleration and deceleration, avoiding sudden jolts that may damage goods.
- Fork Specifications: Adopts standard fork dimensions—common lengths are 1150mm or 1220mm, and outer widths are 540mm or 685mm—to match most standard pallets. The minimum fork height is about 85mm for easy insertion under pallets, while basic models have a maximum lifting height of around 120mm (focused on horizontal handling; high-lift variants are available for specific stacking needs).
- Charging & Endurance: Lead-acid battery versions take approximately 8-10 hours for a full charge and support 6-8 hours of continuous operation under normal working conditions. Lithium-ion battery versions enable fast charging (2-4 hours for a full charge) and longer continuous working time (8-10 hours).

Key Features

- Durable "King Kong" Structure: Features a reinforced steel frame and high-strength fork material, enhancing load-bearing capacity and impact resistance. It is suitable for heavy-duty, frequent-use scenarios such as manufacturing workshops and logistics hubs.
- Efficient Power System: Equipped with a high-torque drive motor (DC or AC) that delivers stable power during loaded transportation. The hydraulic lifting system operates smoothly with low noise and low energy consumption, reducing operational costs.
- Ergonomic Operation: Comes with an ergonomically designed control handle, integrating buttons for lifting, lowering, forward, and backward functions. This allows one-hand operation, reducing operator fatigue during long shifts. The handle is foldable for space-saving storage when not in use.
- Comprehensive Safety Protection: Standard safety configurations include an emergency power-off switch, overload protection, and a mechanical parking brake. Some models are equipped with a reverse warning buzzer to alert surrounding personnel and avoid collisions in busy areas.
- Flexible Maneuverability: Has a small turning radius (usually ≤1500mm), enabling easy navigation in narrow spaces like warehouse aisles or small workshops, thus improving space utilization.

Application Scenarios

Widely used in manufacturing workshops, logistics distribution centers, retail warehouses, and supermarkets. It is mainly applied to the horizontal transportation, loading, and unloading of 2.0-ton palletized goods, such as industrial raw materials, finished products, and daily necessities, effectively boosting material handling efficiency.
