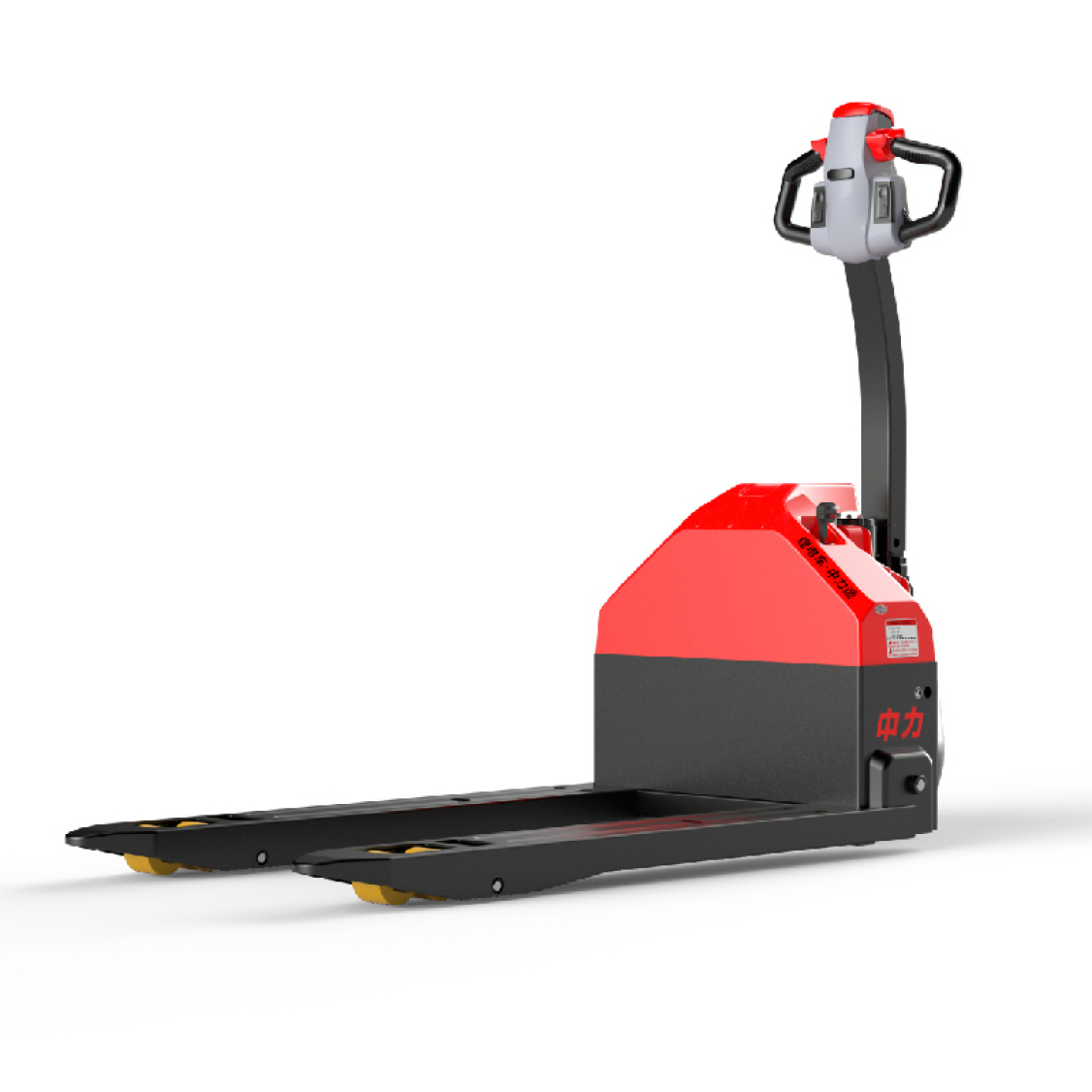

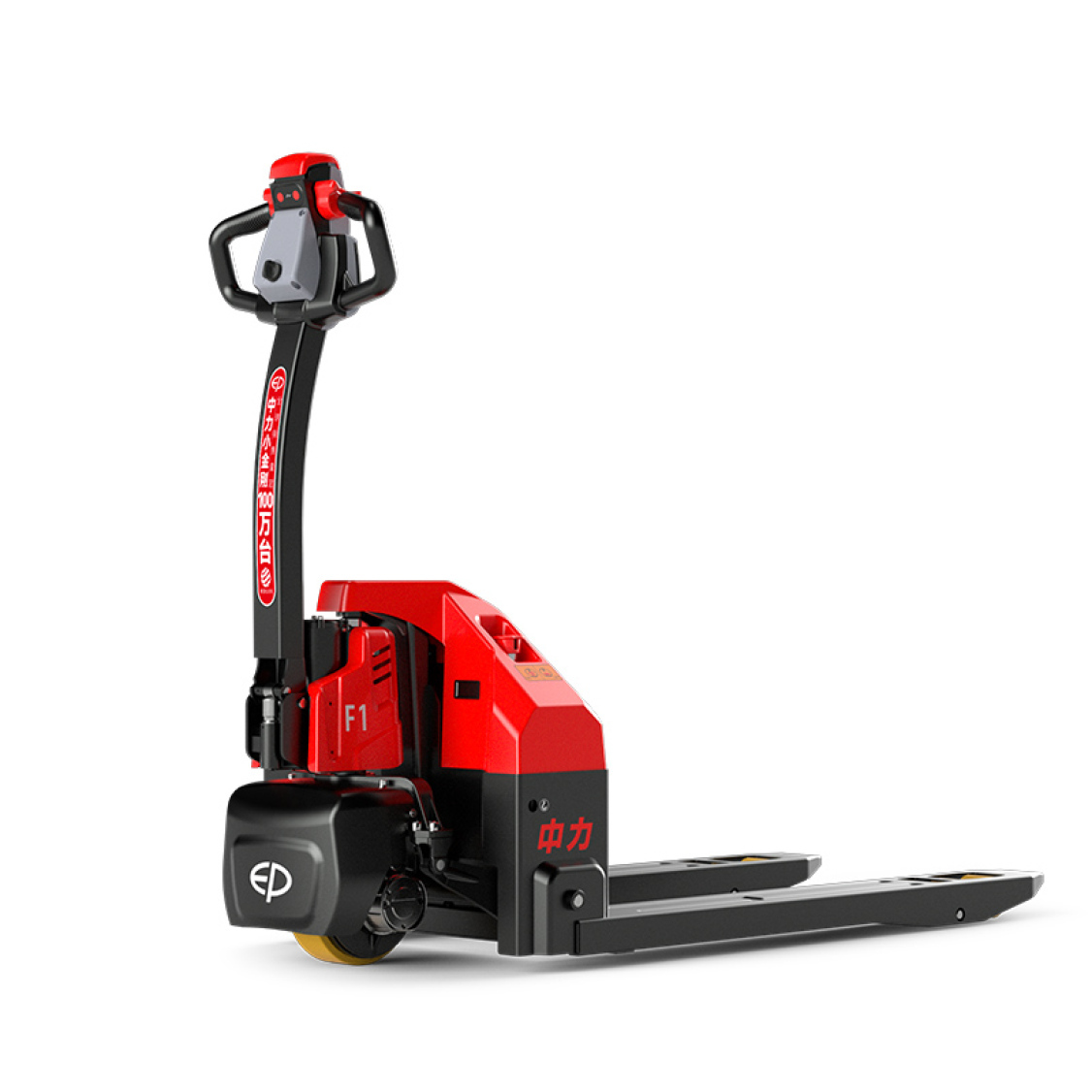

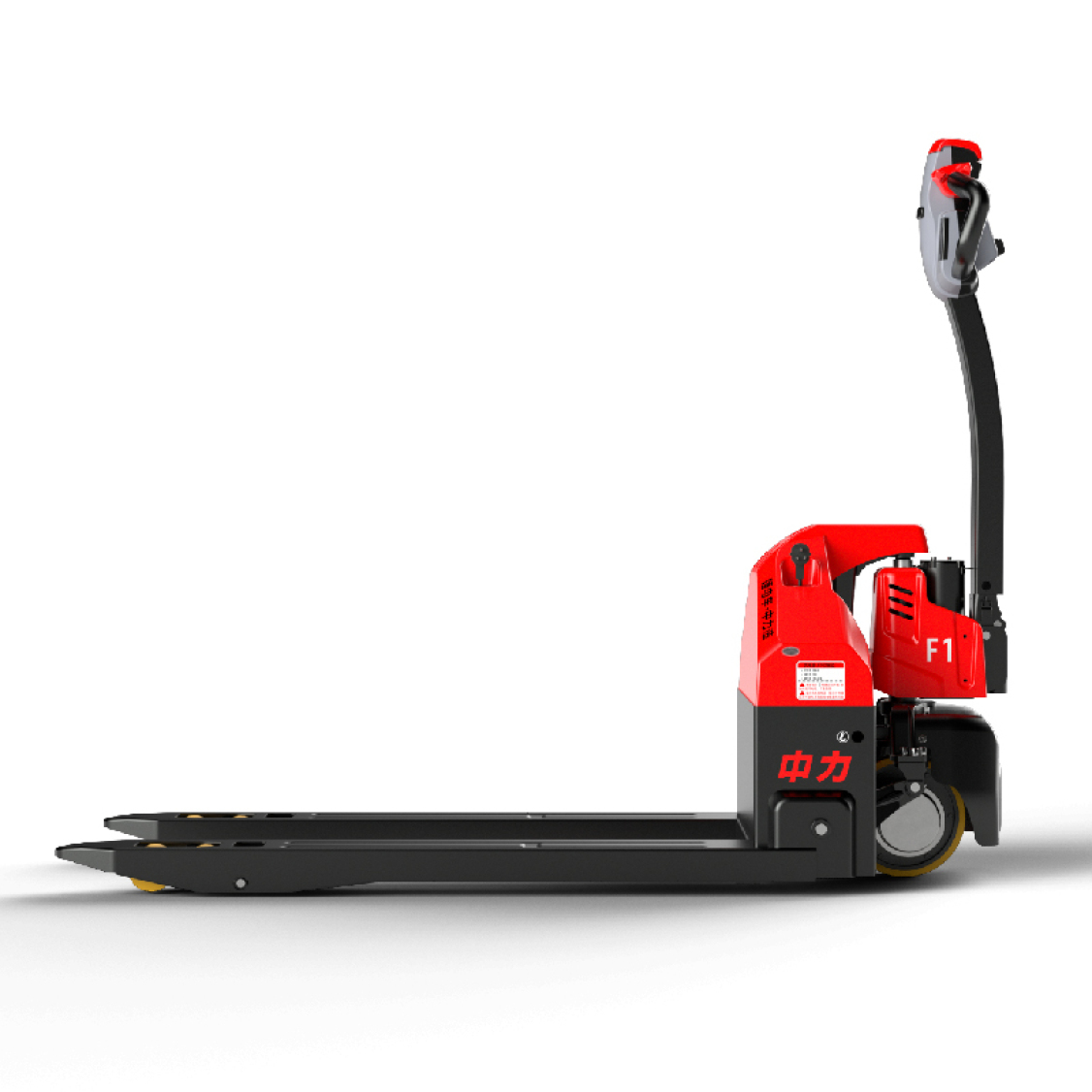

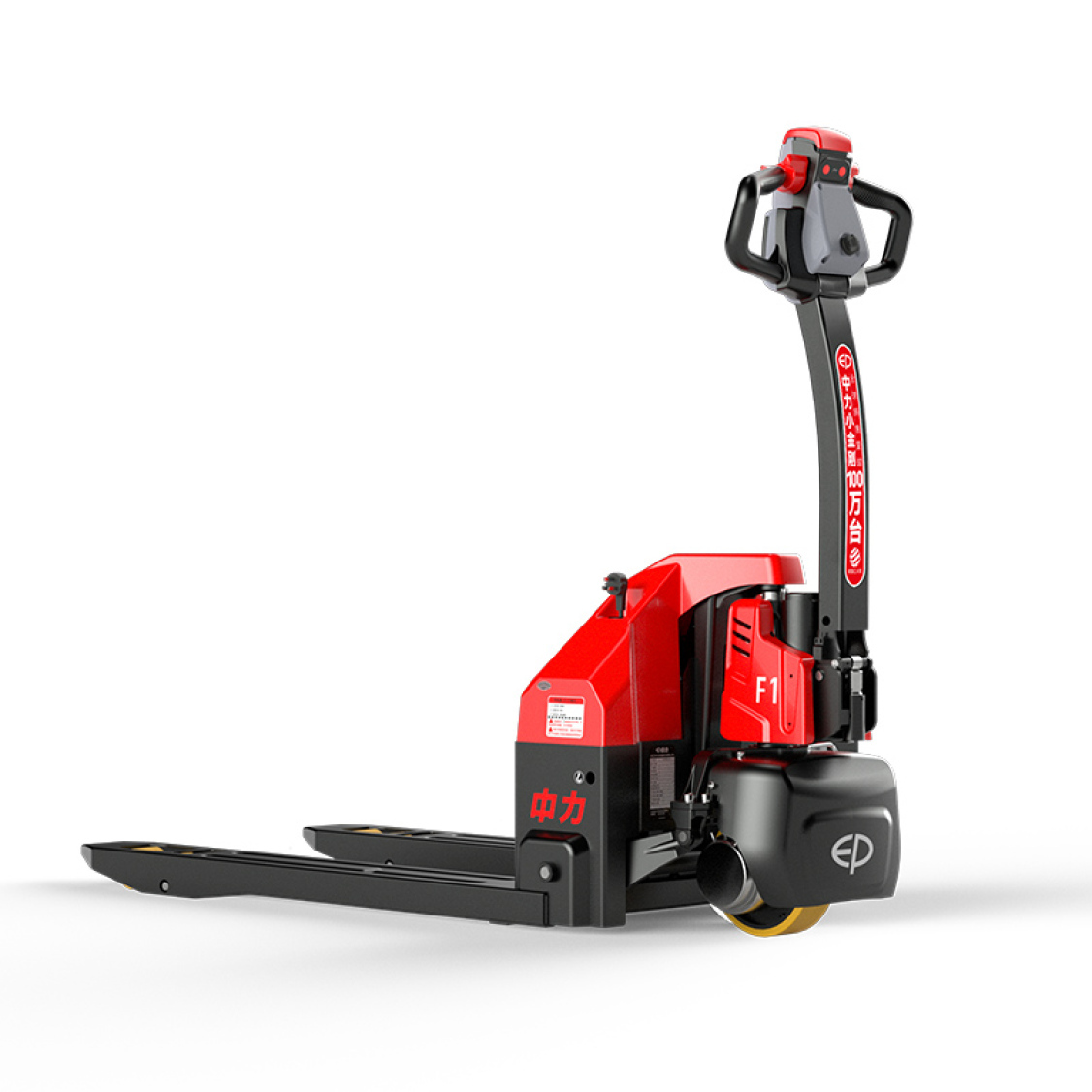

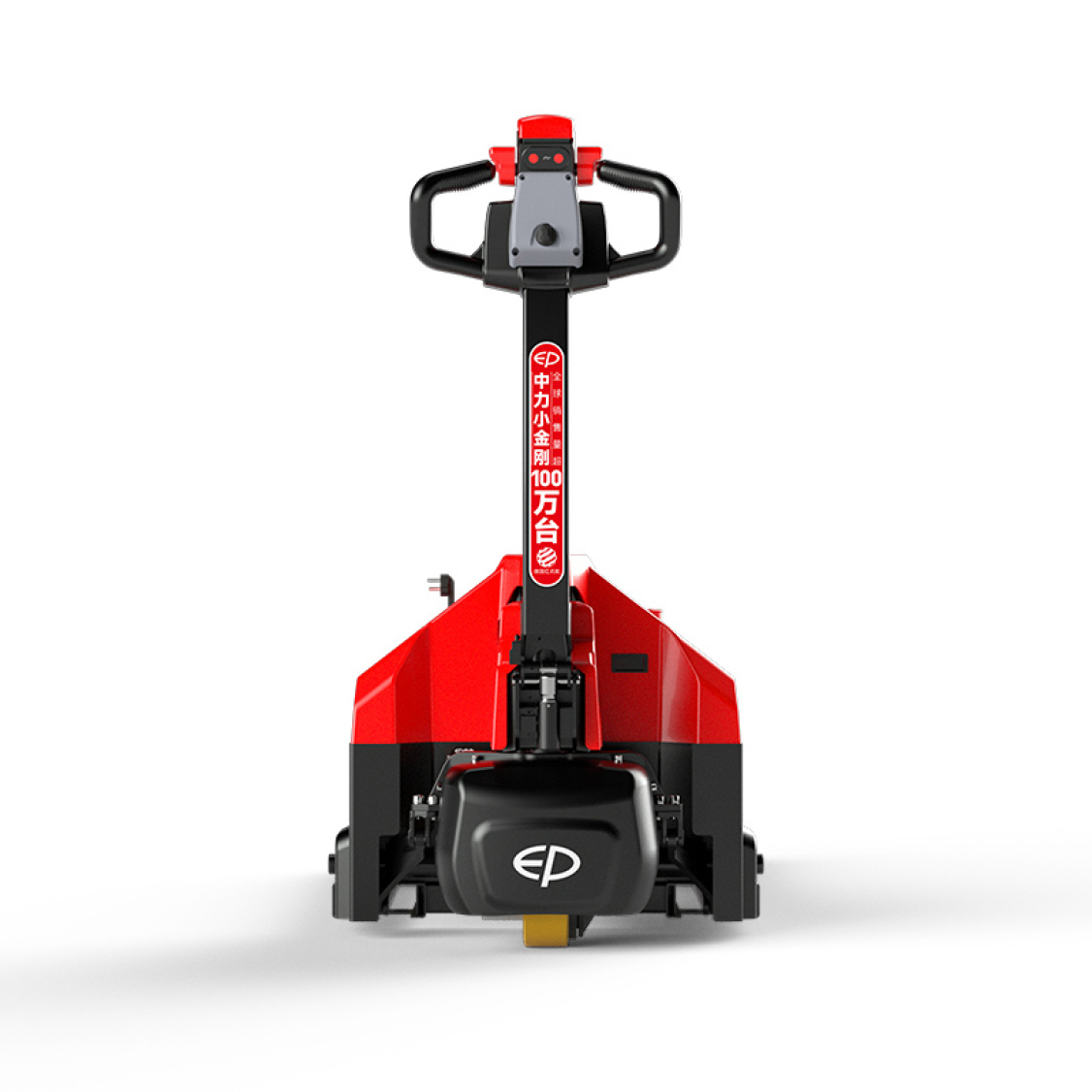

Walkie Pallet Truck: 1.5T Lithium-Ion Electric Pallet Truck F1 Product Introduction
General Overview
The F1 1.5T lithium-ion electric walkie pallet truck is a compact, cost-effective material handling solution engineered for light-to-medium-duty indoor operations. It leverages the advantages of lithium-ion power—lightweight, fast charging, and maintenance-free performance—to excel in small warehouses, retail backends, electronics workshops, and small-scale logistics hubs. Designed for maneuverability and efficiency, it streamlines the transport of boxed goods, standard pallets, and small industrial parts while meeting eco-friendly operation requirements.
Performance Parameters
• Load Capacity: Rated load of 1500kg with a load center distance of 600mm; static load capacity of 3000kg, compatible with standard pallets (1200×800mm/1200×1000mm) and light cargo like electronic components or packaged products.
• Power System: Equipped with a 0.65kW high-efficiency DC drive motor and a 0.75kW lifting motor, powered by a 24V/50Ah lithium iron phosphate (LiFePO₄) battery (optional 24V/60Ah for extended shifts). It supports 6–8 hours of continuous operation and features fast charging (80% charge in 1.2–1.8 hours via a 220V dedicated charger); no memory effect allows flexible partial charging.
• Travel & Lifting Speed: Travel speed reaches 3.8km/h (fully loaded) and 4.2km/h (unloaded); lifting speed is 19mm/s (fully loaded) and 26mm/s (unloaded); lowering speed is 35mm/s (fully loaded) and 29mm/s (unloaded)—balancing efficiency and stability for narrow-space maneuvering.
• Climbing Ability: Maximum climbing slope of 5% (fully loaded) and 12% (unloaded), adapting to gentle ramps in warehouses or workshop floors.
Dimensions & Structure
• Overall Dimensions: Overall length of 1550mm, overall width of 550mm (680mm optional for wider pallets), and minimum turning radius of 1420mm—compact enough to navigate 1.7m-wide narrow aisles and tight corners (e.g., retail storage rooms).
• Fork Specifications: Fork size of 45mm×140mm×1150mm (1220mm optional), outer fork width of 530mm (670mm optional); maximum lifting height of 110mm and fork-down height of 80mm, ensuring easy alignment with standard loading platforms and pallets.
• Structural Strength: Forks made of Q235 high-strength steel (42mm thick) with reinforced root welds; chassis adopts 3mm-thick reinforced steel plates; lithium battery compartment uses a flame-retardant ABS shell (IP65 dustproof/waterproof) to enhance safety.
Product Features
• Lithium-Ion Power Advantages:
◦ Lightweight & Agile: Lithium battery reduces the truck’s net weight to ~270kg (20% lighter than lead-acid models of the same tonnage), making it easier to maneuver in tight spaces.
◦ Long-Lasting & Cost-Saving: Battery cycle life ≥2000 times (3–5 years of service), twice that of lead-acid batteries; fully maintenance-free (no water or electrolyte refilling) to lower long-term upkeep costs.
• Ultra-Compact Maneuverability: Small turning radius and streamlined body enable flexible operation in confined areas—such as between supermarket shelves, small workshop production lines, or narrow warehouse aisles.
• User-Friendly Operation:
◦ Walk-behind tiller with a 10° curved anti-slip rubber grip, fitting the palm to reduce hand fatigue during long shifts.
◦ Centralized buttons for lifting/lowering, forward/reverse, and 2-speed adjustment (low for precision, high for efficiency) support one-hand control; LED indicator provides clear real-time battery level feedback.
• Reliable Safety Protection:
◦ Standard electromagnetic brake (automatically engages when the tiller is released or in emergencies); prominent red emergency power-off switch.
◦ Lithium battery with overcharge, over-discharge, and short-circuit protection; non-slip pedal (155mm wide) prevents foot slippage during operation.
• Easy Maintenance: Modular design for electrical components (motor, charger, battery) simplifies inspection and replacement; Φ200mm polyurethane drive wheels offer strong wear resistance, extending service life.
Applications
The F1 1.5T lithium-ion pallet truck is widely suited for light-duty, space-constrained scenarios:
• Retail & Supermarkets: Moving goods from back warehouses to sales floors, or unloading small-batch delivery trucks.
• Small Warehouses & E-Commerce: Handling small-batch pallets, boxed goods, or electronic products with high-frequency, short-distance moves.
• Light Industry: Transporting small parts between production lines in electronics, textile, or food processing workshops.
• Logistics Stations: Sorting and transferring light cargo in community logistics hubs or small distribution centers.
