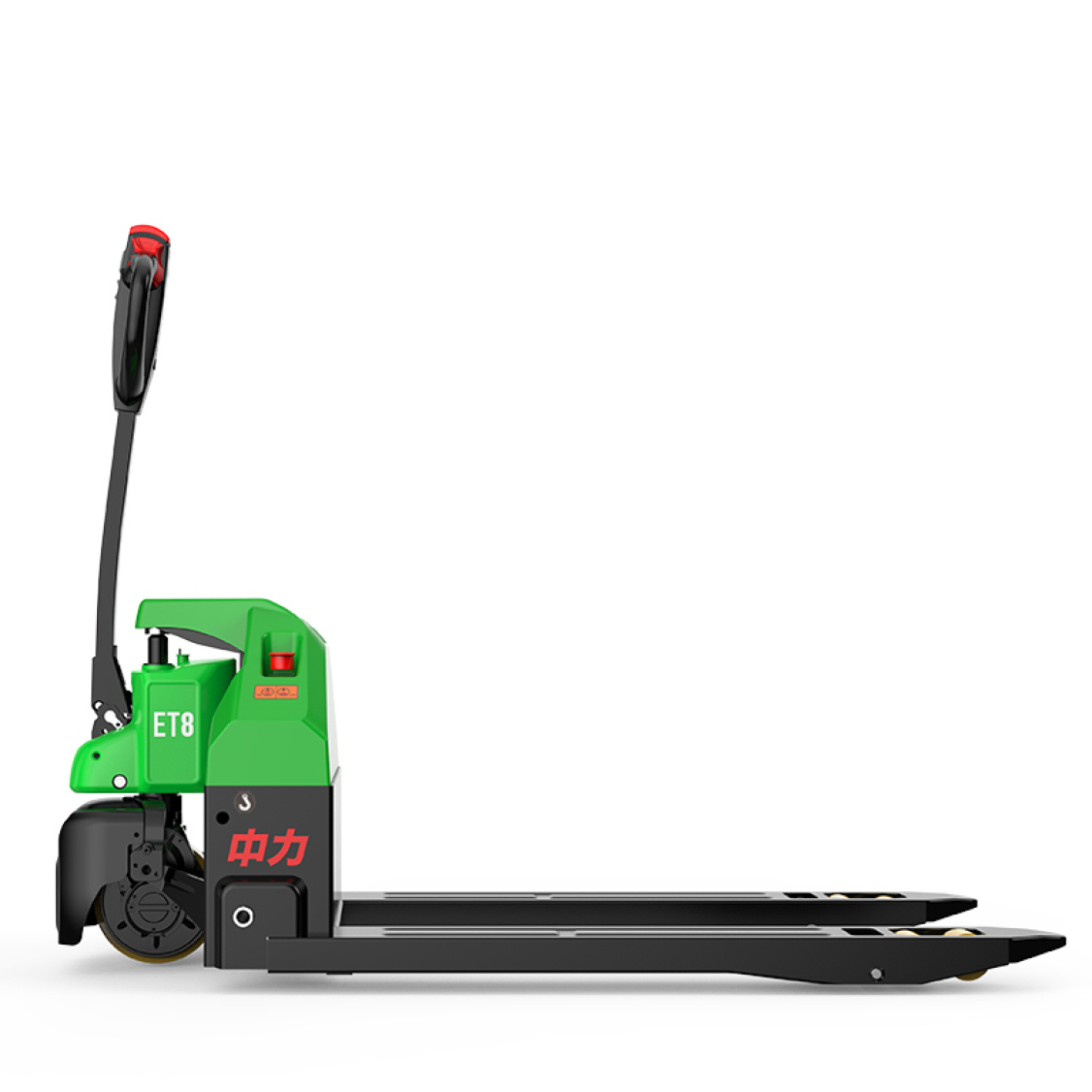

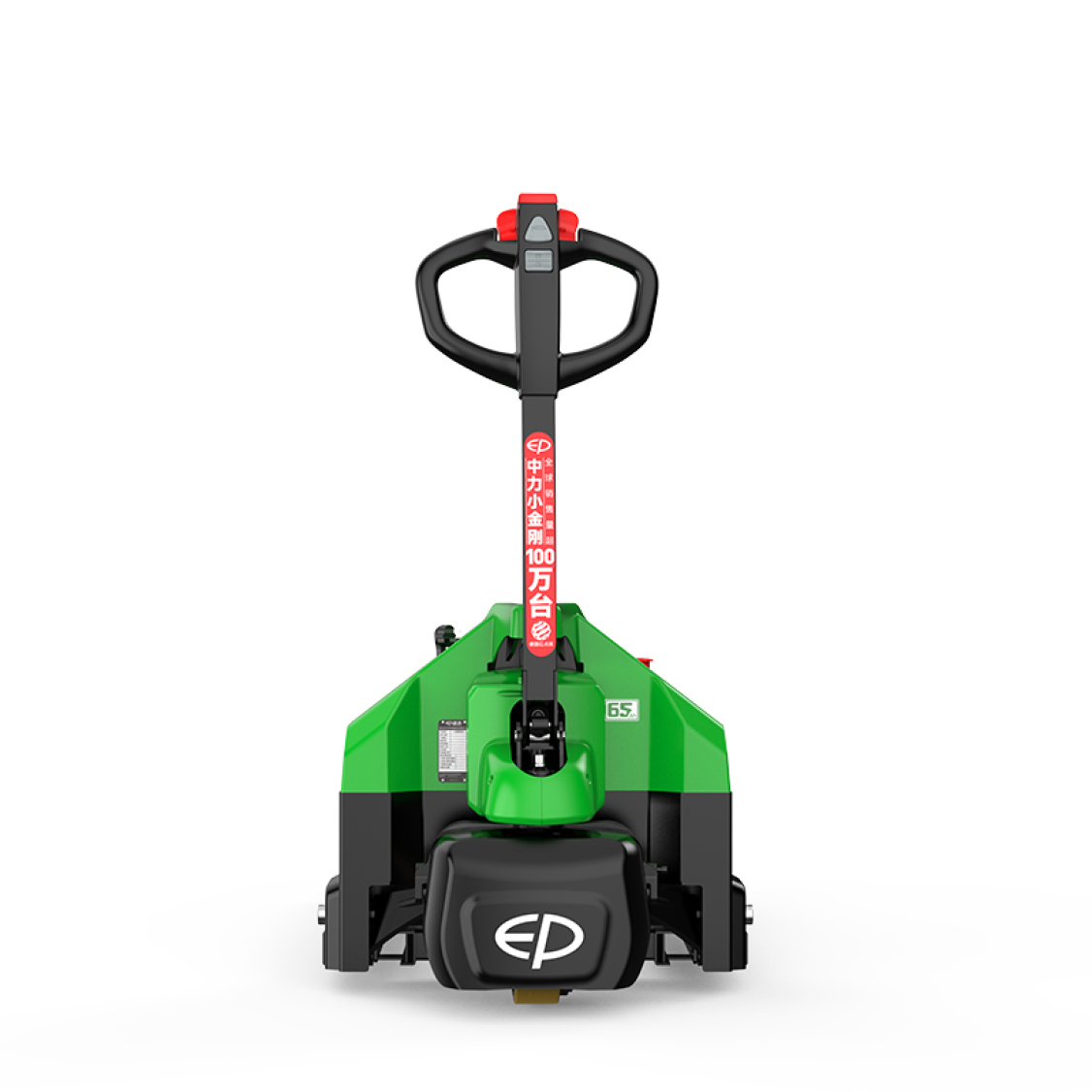

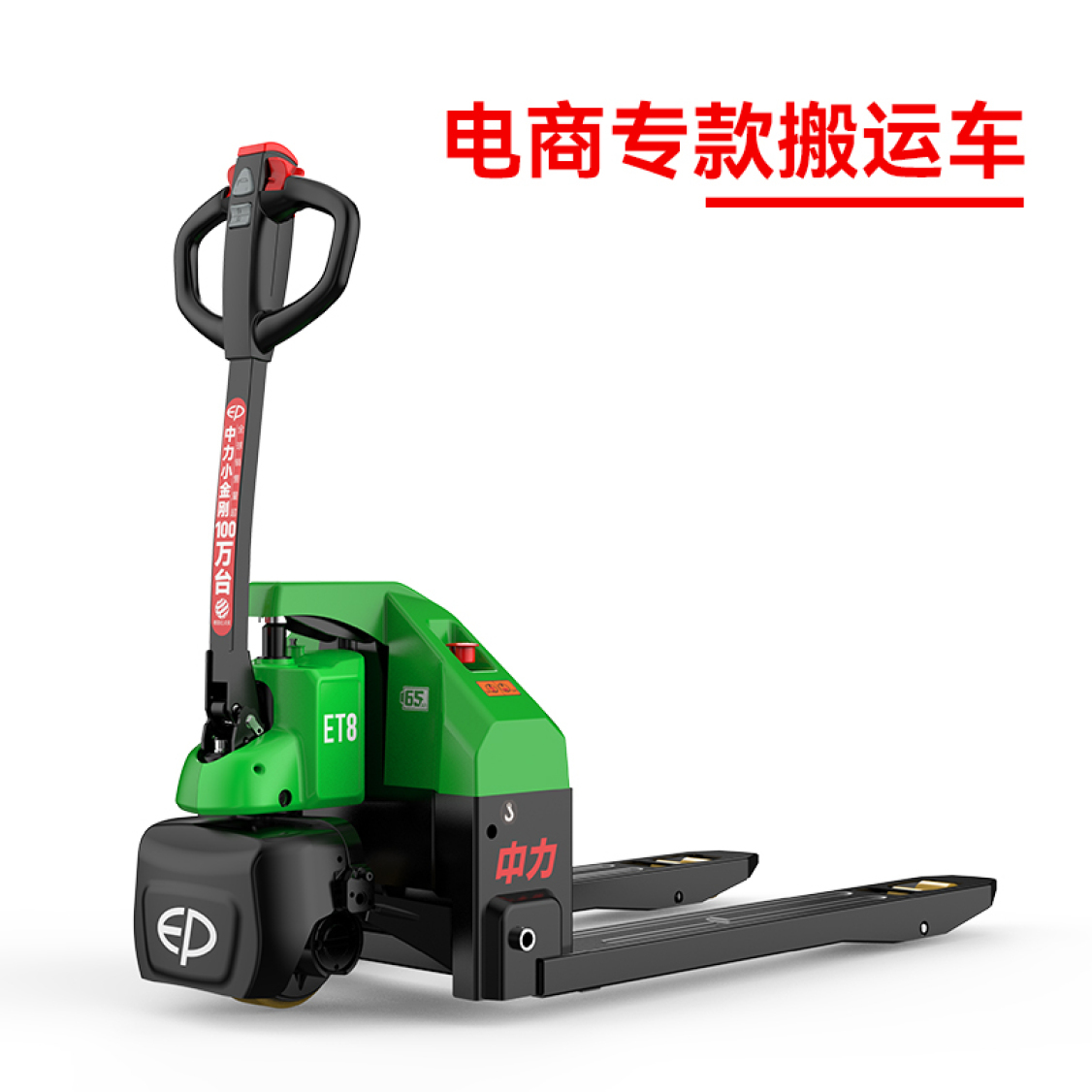

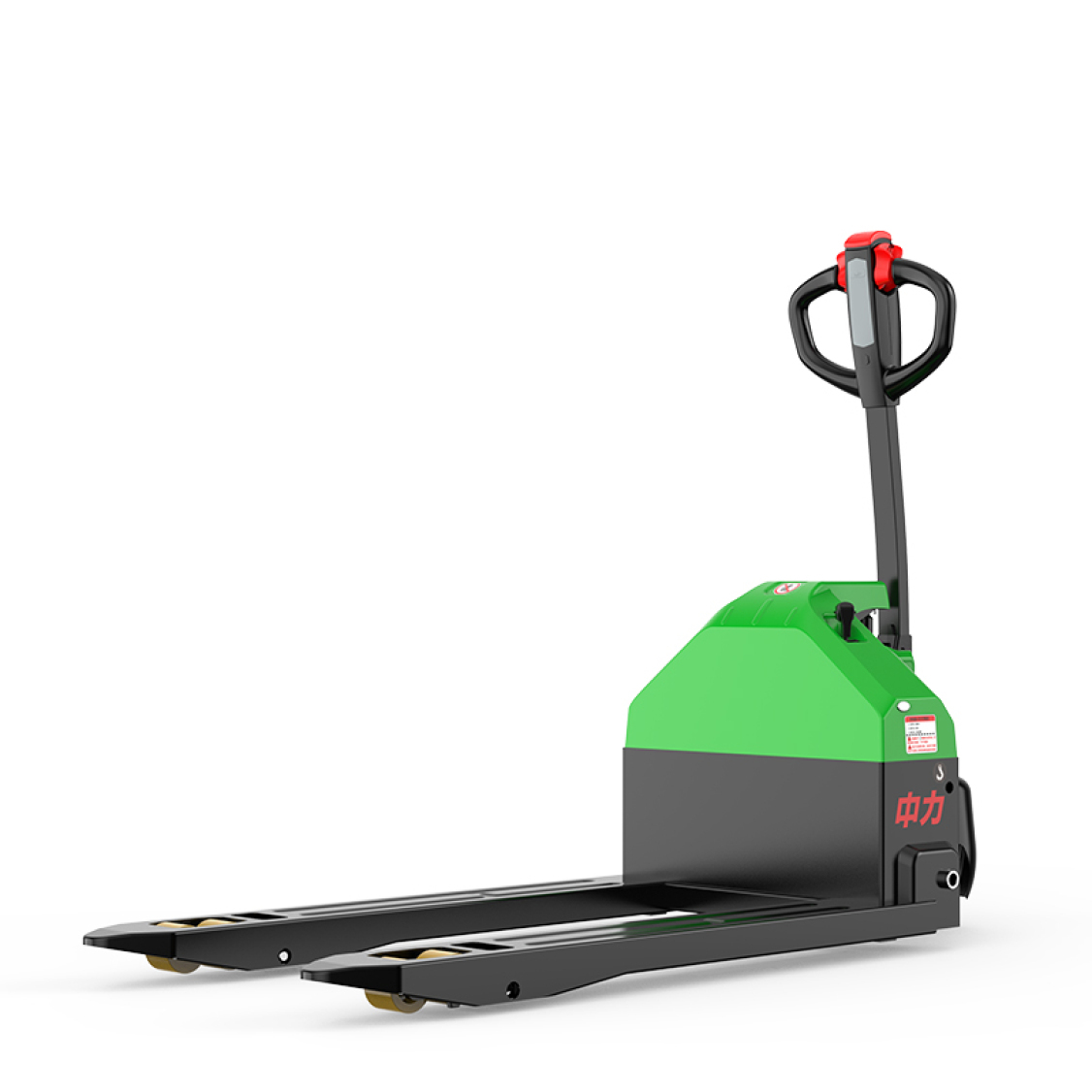

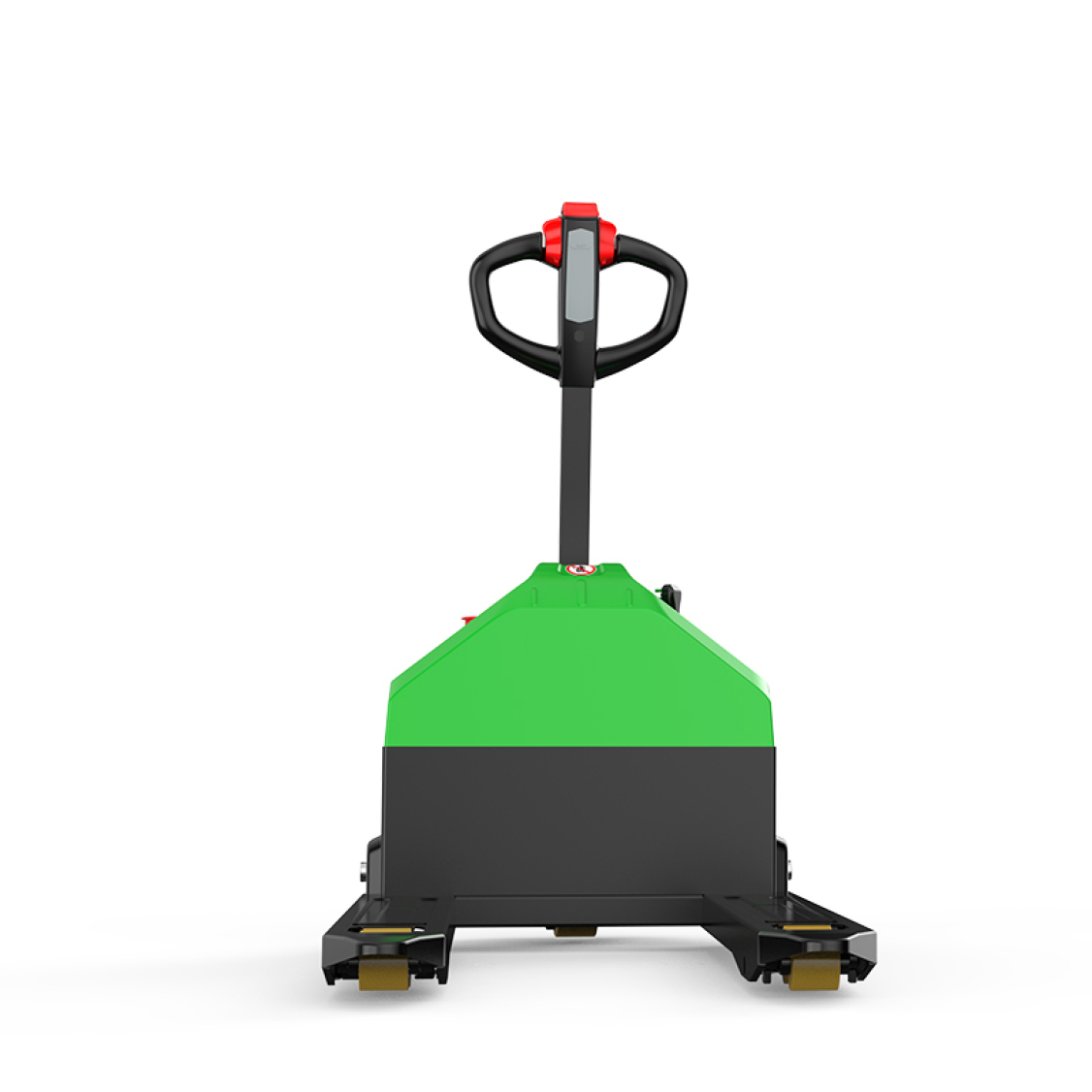

Walkie Pallet Truck: 1.5T Electric Pallet Truck EPT20-15ET8 (Lithium-Ion Green) Product Introduction
General Overview
The EPT20-15ET8 is a 1.5-ton electric walkie pallet truck featuring a lithium-ion power system and an iconic "Lithium-Ion Green" design. Tailored for eco-friendly, efficient light-to-medium-duty handling, it excels in indoor scenarios like warehouses, retail backends, electronics workshops, and fresh logistics centers—combining the advantages of lithium-ion batteries (lightweight, long life) with low-noise, zero-pollution operation.
Performance Parameters
• Load Capacity: Rated load of 1500kg with a load center distance of 600mm, compatible with standard pallets (1200×800mm/1200×1000mm), boxed goods, small electronic components, and fresh produce; static load capacity of 3000kg ensures no deformation under short-term heavy loads.
• Power System: Equipped with a 0.7kW high-efficiency DC drive motor and a 0.8kW lifting motor, powered by a 24V/60Ah lithium iron phosphate (LiFePO₄) battery. It supports 7–9 hours of continuous operation and features fast charging (80% charge in 1.5–2 hours via a 220V dedicated charger); no memory effect, allowing partial charging.
• Travel & Lifting Speed: Travel speed reaches 4.0km/h (fully loaded) and 4.5km/h (unloaded); lifting speed is 20mm/s (fully loaded) and 28mm/s (unloaded); lowering speed is 36mm/s (fully loaded) and 30mm/s (unloaded)—balancing efficiency and stability for daily handling.
• Climbing Ability: Maximum climbing slope of 6% (fully loaded) and 15% (unloaded), adapting to gentle ramps in indoor facilities.
Dimensions & Structure
• Overall Dimensions: Overall length of 1580mm, overall width of 560mm (680mm optional for wider pallets), and minimum turning radius of 1450mm—compact enough to navigate 1.8m-wide narrow aisles and tight spaces (e.g., supermarket back warehouses) with ease.
• Fork Specifications: Fork size of 45mm×140mm×1150mm (1220mm optional), outer fork width of 530mm (670mm optional); maximum lifting height of 110mm and fork-down height of 80mm, ensuring easy alignment with standard loading platforms.
• Structural Strength: Forks made of Q345 manganese steel (45mm thick) with reinforced root welds; chassis adopts 3mm-thick reinforced steel plates; the lithium battery compartment uses a flame-retardant shell (V0 grade) for enhanced safety.
Product Features
• "Lithium-Ion Green" Core Advantages:
◦ Eco-Friendly & Lightweight: Zero heavy metal pollution; lithium battery is 50% lighter than lead-acid batteries of the same capacity, reducing the truck’s net weight to ~280kg (15% lighter than lead-acid models).
◦ Long Lifespan: Battery cycle life ≥2000 times (3–5 years of service), 2–3 times that of lead-acid batteries; low self-discharge rate (<3% per month) for long-term storage.
• Efficient & Quiet Operation: Low-noise motor (≤62dB) creates a comfortable working environment, suitable for noise-sensitive areas like electronics workshops or fresh food warehouses; fast charging minimizes downtime during shifts.
• Intelligent & Ergonomic Design:
◦ 2.0-inch LCD digital display shows real-time battery level, charging status, and fault codes (e.g., overcharge, motor overload) for quick troubleshooting.
◦ Walk-behind tiller with 12° curved anti-slip rubber grip; one-key lifting/lowering and two-speed adjustment (low for precision, high for efficiency) support one-hand operation, reducing operator fatigue.
• Comprehensive Safety Protection:
◦ Electromagnetic brake (auto-brakes within 0.5 seconds when tiller is released or emergency button pressed); prominent red emergency power-off switch.
◦ Lithium battery with overcharge, over-discharge, and short-circuit protection; non-slip pedal (160mm wide) and front anti-collision rubber buffer (25mm thick).
• Low Maintenance: Lithium battery is fully maintenance-free (no water addition or electrolyte checks); modular electrical components (centralized wiring harness with IP65 waterproof connectors) simplify inspection and replacement.
Applications
The EPT20-15ET8 is widely used in eco-friendly, efficient light-to-medium handling scenarios:
• Electronics & Precision Industry: Transporting small components or finished products in low-noise workshops.
• Fresh Logistics & Food Retail: Moving refrigerated goods (compatible with 0–40℃ working temperature) between cold storage and sales areas.
• Urban Warehouses & E-Commerce Fulfillment Centers: Handling small-batch pallets or boxed goods with high-frequency, short-distance moves.
• Office & Commercial Buildings: Delivering supplies (e.g., paper, office equipment) in noise-sensitive indoor spaces.
