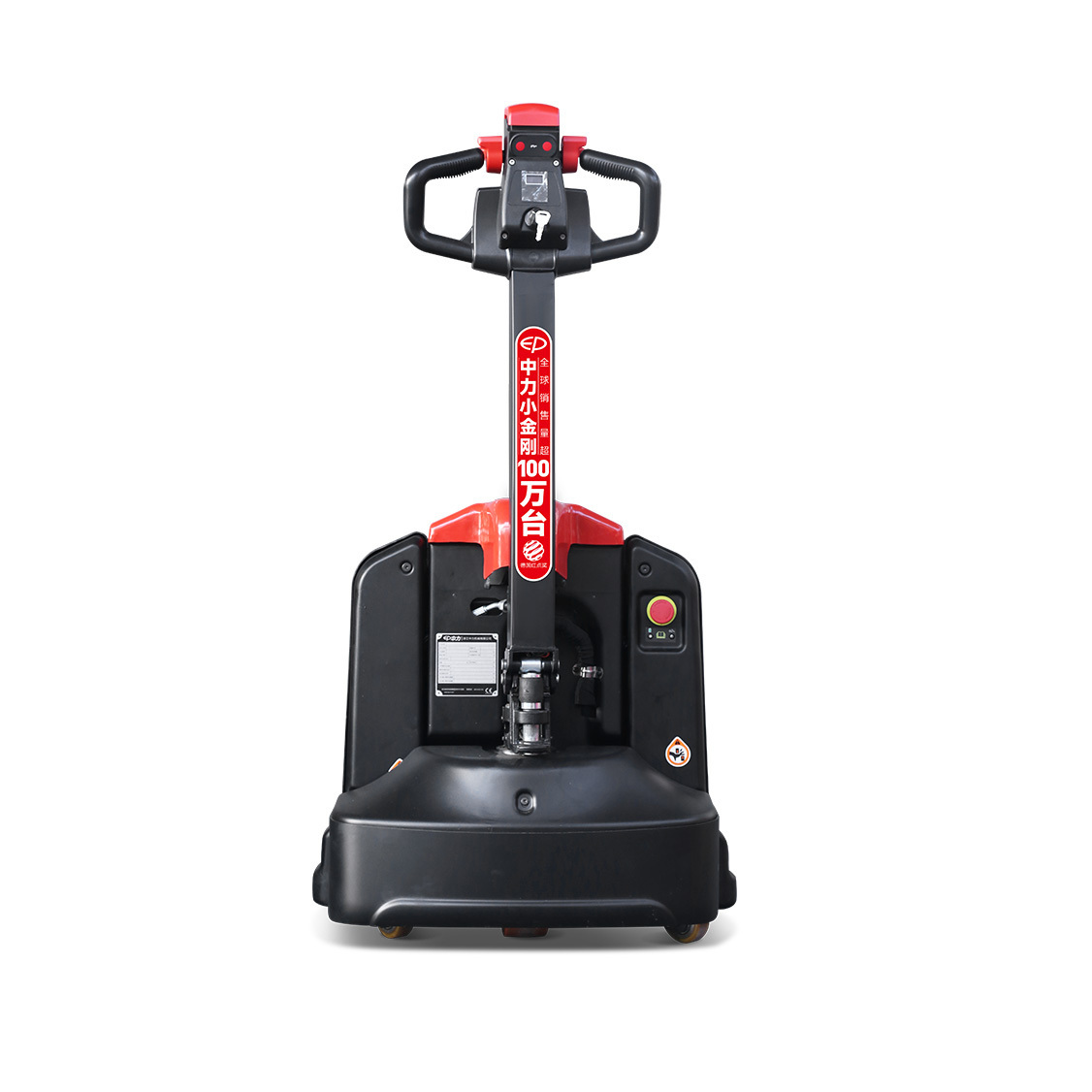

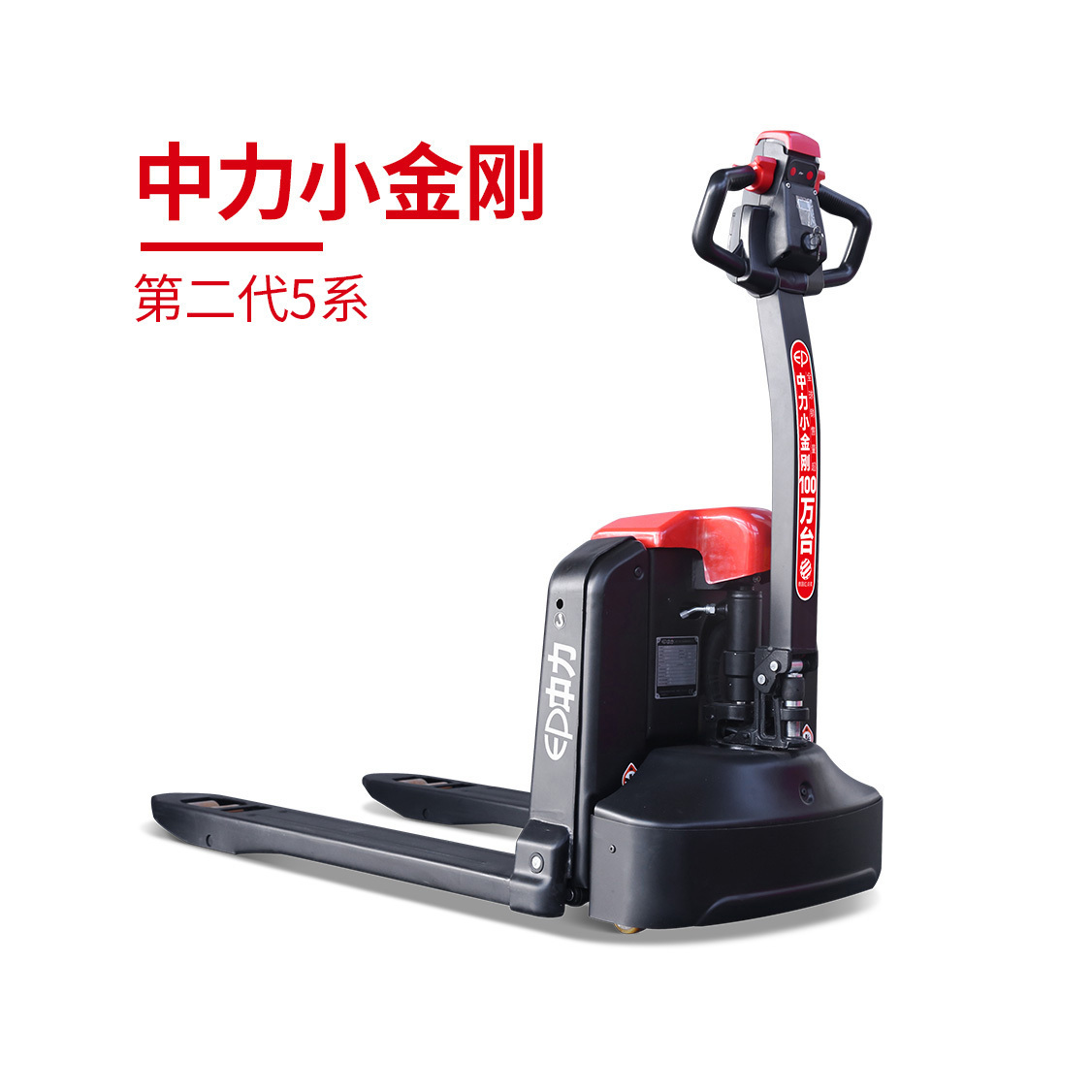

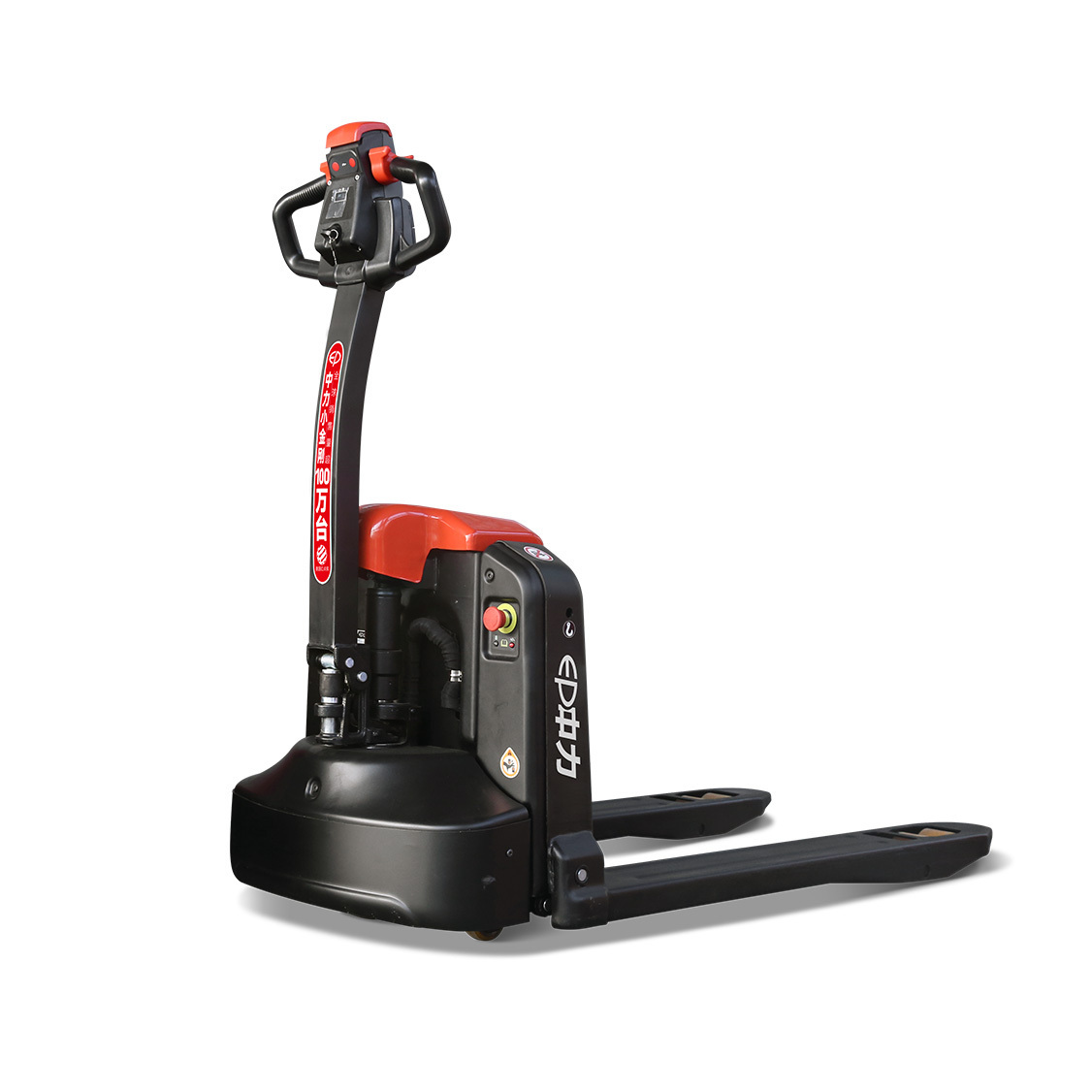

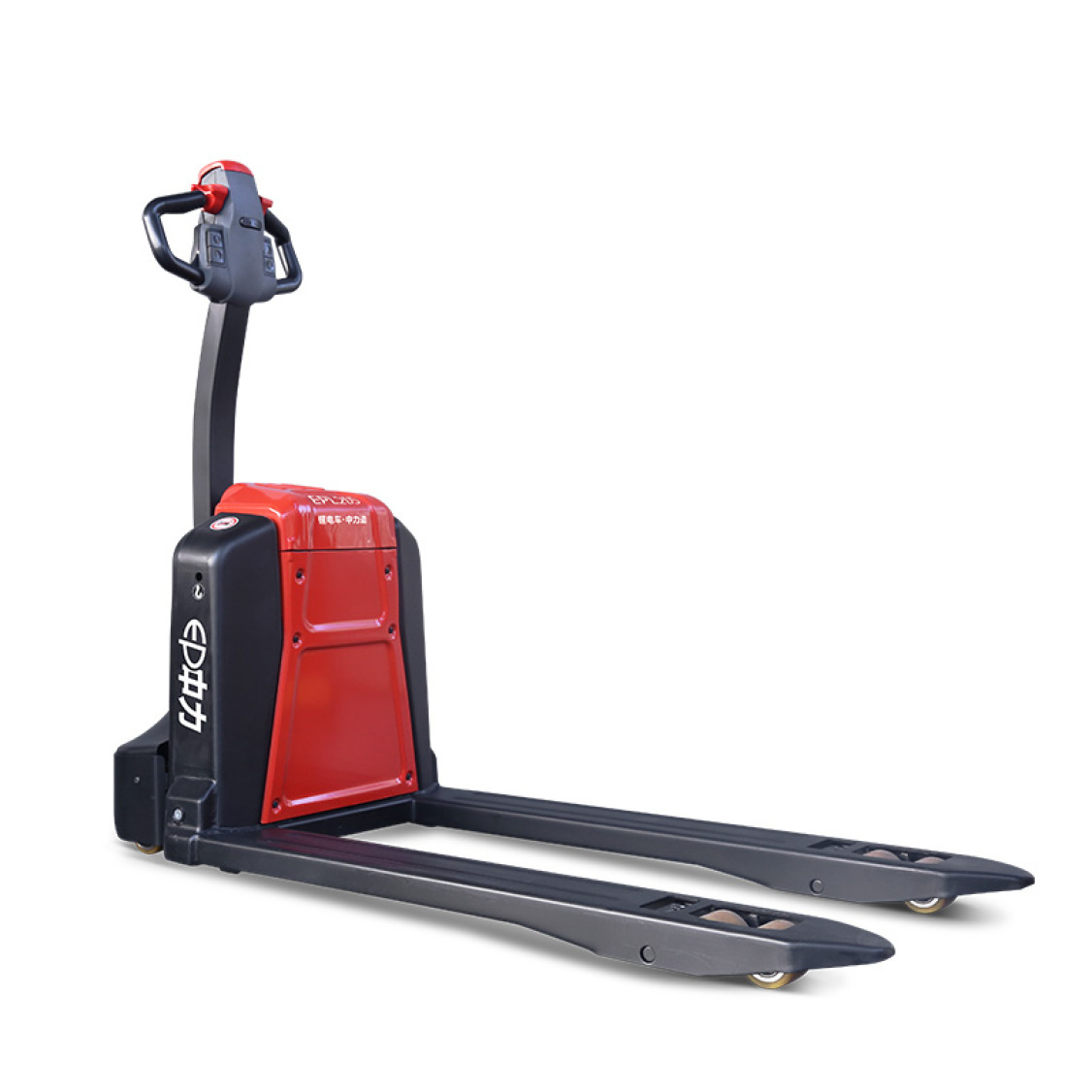

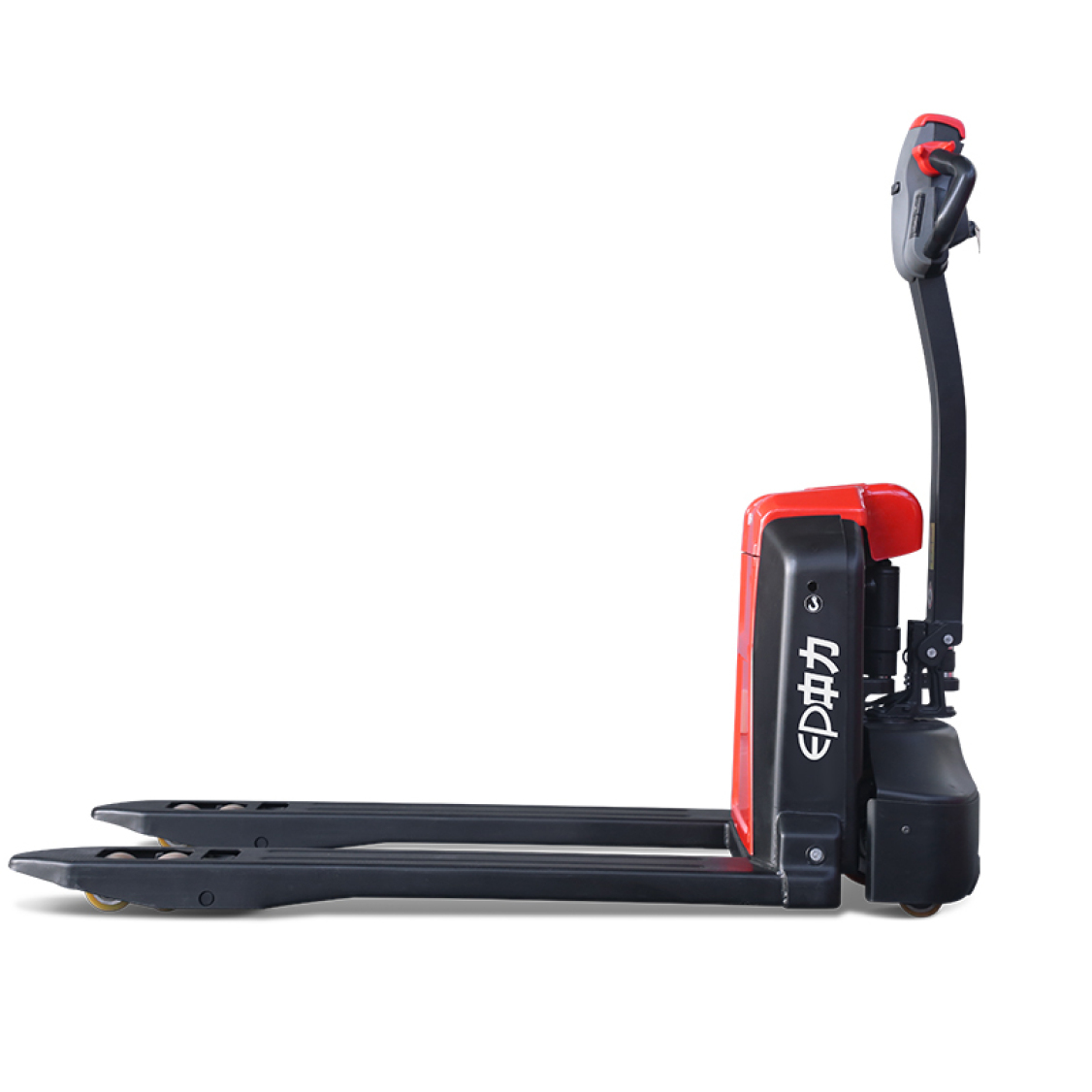

Walkie Pallet Truck: 2.0-Ton Electric Pallet Truck EPL205Z Product Introduction
1. General Information
The EPL205Z 2.0-ton electric pallet truck is a high-performance material handling equipment, designed to meet the demands of medium to heavy - duty cargo transportation in various industrial settings, such as warehouses, workshops, and logistics centers.
2. Performance Parameters
• Load Capacity: With a rated load of 2000kg and a load center distance of 600mm, it can handle a wide range of heavy - duty cargo, making it suitable for transporting large pallets of goods, industrial components, and heavy - packaged products.
• Power System:
◦ Equipped with a 0.9kW rated - power DC drive motor, providing stable and strong power for smooth movement. The 0.8kW rated - power lifting motor ensures efficient lifting operations.
◦ Powered by a 48V/20Ah (30Ah optional) maintenance - free lead - acid battery. It offers reliable power supply for continuous work, and the built - in charger allows for convenient charging at any standard 220V power outlet.
• Travel and Lifting Speed:
◦ Travel speed reaches 5km/h when fully loaded and 5.5km/h when unloaded, enabling quick transportation within the working area.
◦ The lifting speed is 0.020m/s when fully loaded and 0.025m/s when unloaded, while the lowering speed is 0.065m/s when fully loaded and 0.030m/s when unloaded. These speeds are optimized to balance efficiency and safety during operation.
• Climbing Ability: It can achieve a maximum climbing slope of 6% when fully loaded and 16% when unloaded, which means it can handle gentle ramps and slopes in industrial environments with relative ease.
3. Dimensions and Structure
• Overall Dimensions: The overall length of the truck is 1550mm, and the overall width is 610mm (695mm is also available), making it compact enough to operate in narrow aisles. The minimum turning radius is only 1330mm, ensuring excellent maneuverability in tight spaces.
• Fork Dimensions: The fork size is 50mm×150mm×1150mm, and the fork outer width is 540mm (685mm optional). The fork can be adjusted to fit different pallet sizes, with a standard maximum lifting height of 115mm and a fork - down height of 80mm, which is suitable for loading and unloading goods from various platforms.
• Chassis and Structure: The chassis is made of high - strength steel, providing stability and durability. The vehicle's structure is designed to distribute the load evenly, reducing the risk of tipping and ensuring safe operation even under heavy loads.
4. Product Features
• Compact and Flexible Design: Its exquisite and compact body structure allows for easy operation in narrow spaces. Whether it's a crowded warehouse or a small - scale workshop, the EPL205Z can move around freely, improving work efficiency in limited - space environments.
• Powerful Performance: Driven by a 48V/900W power system, it can carry a 2 - ton load with a climbing speed of 6%, providing strong power support for heavy - duty tasks. The second - generation drive technology, using DC brushless motors, not only offers powerful performance but also simplifies maintenance by eliminating the need for regular carbon - brush replacement.
• User - friendly Operation:
◦ The standard upright walking design provides a flexible and comfortable handling experience, while also saving steering space.
◦ It is equipped with a full - surround drive cover, which, on the premise of ensuring safety, greatly improves the vehicle's passability and meets the usage needs of more complex working conditions.
◦ Standard power meter, fault indication, etc., offer an intuitive and clear display, making operation and maintenance convenient and worry - free.
• Safe and Reliable:
◦ The electromagnetic braking system is the standard driving brake. It automatically brakes when the handle is released or in an emergency situation, ensuring the safety of operators and goods.
◦ The battery is well - protected, and the vehicle's structure is designed to meet high - safety standards, reducing the risk of accidents during operation.
• Easy Maintenance: The maintenance - free battery reduces the frequency of maintenance work. The overall modular design of the vehicle makes it easier to access and replace components, minimizing downtime and maintenance costs.
5. Applications
The EPL205Z 2.0 - ton electric pallet truck is widely applicable in various industries, including but not limited to:
• Warehousing and Logistics: For loading, unloading, and moving goods within warehouses, distribution centers, and freight yards.
• Manufacturing Plants: Used for transporting raw materials, semi - finished products, and finished products between different production areas in workshops.
• Retail Backends: Facilitating the movement of goods in large - scale supermarkets, hypermarkets, and retail storage areas.
